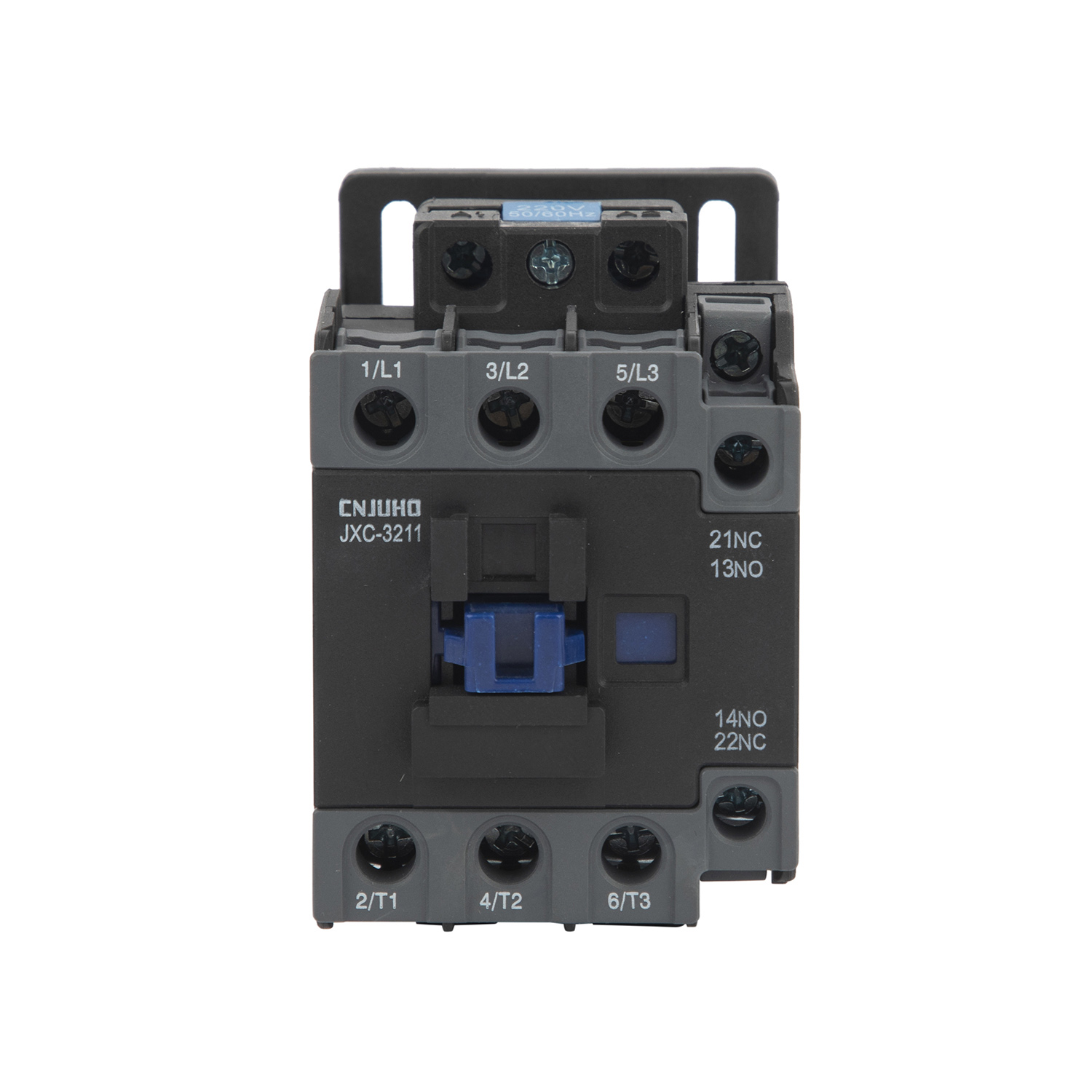

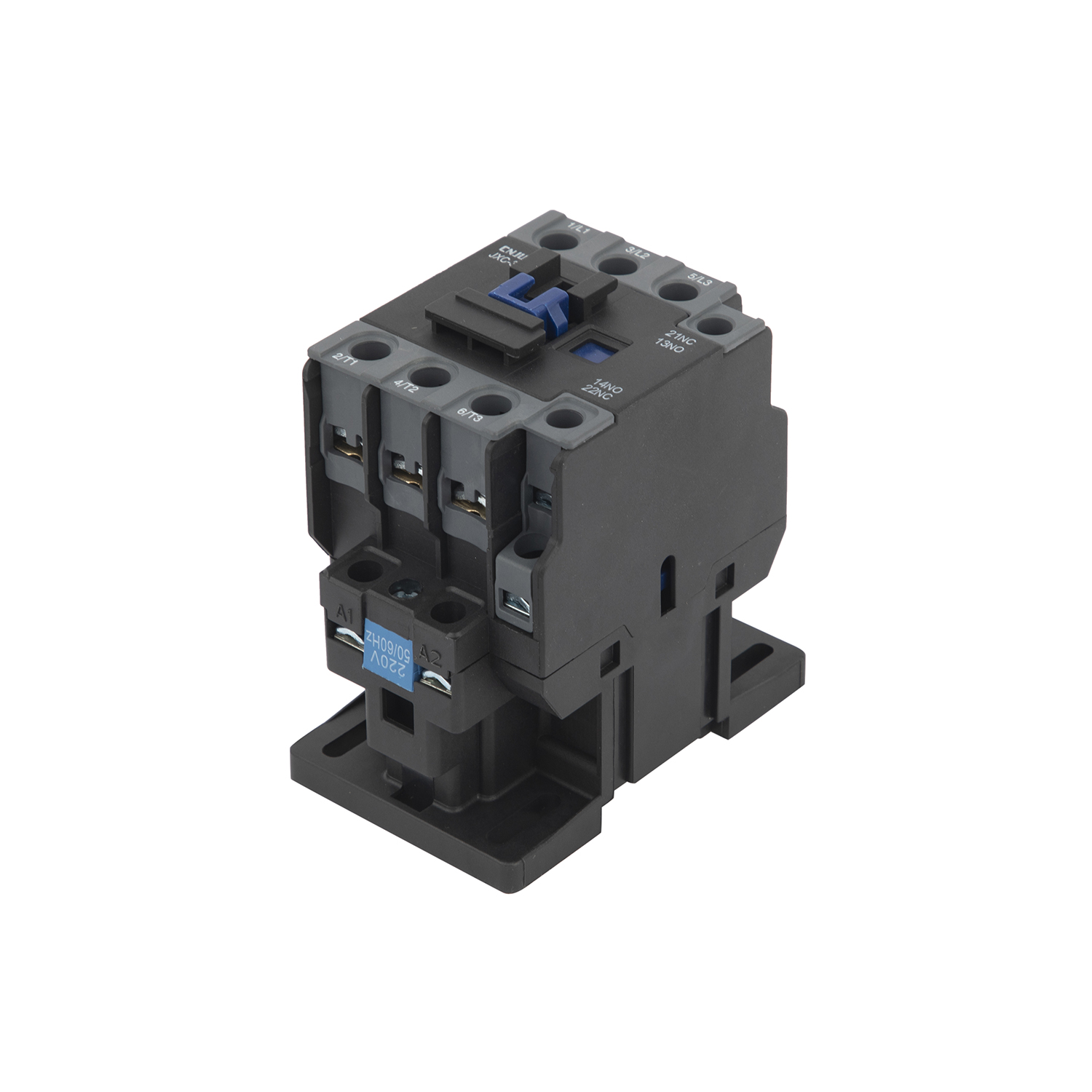

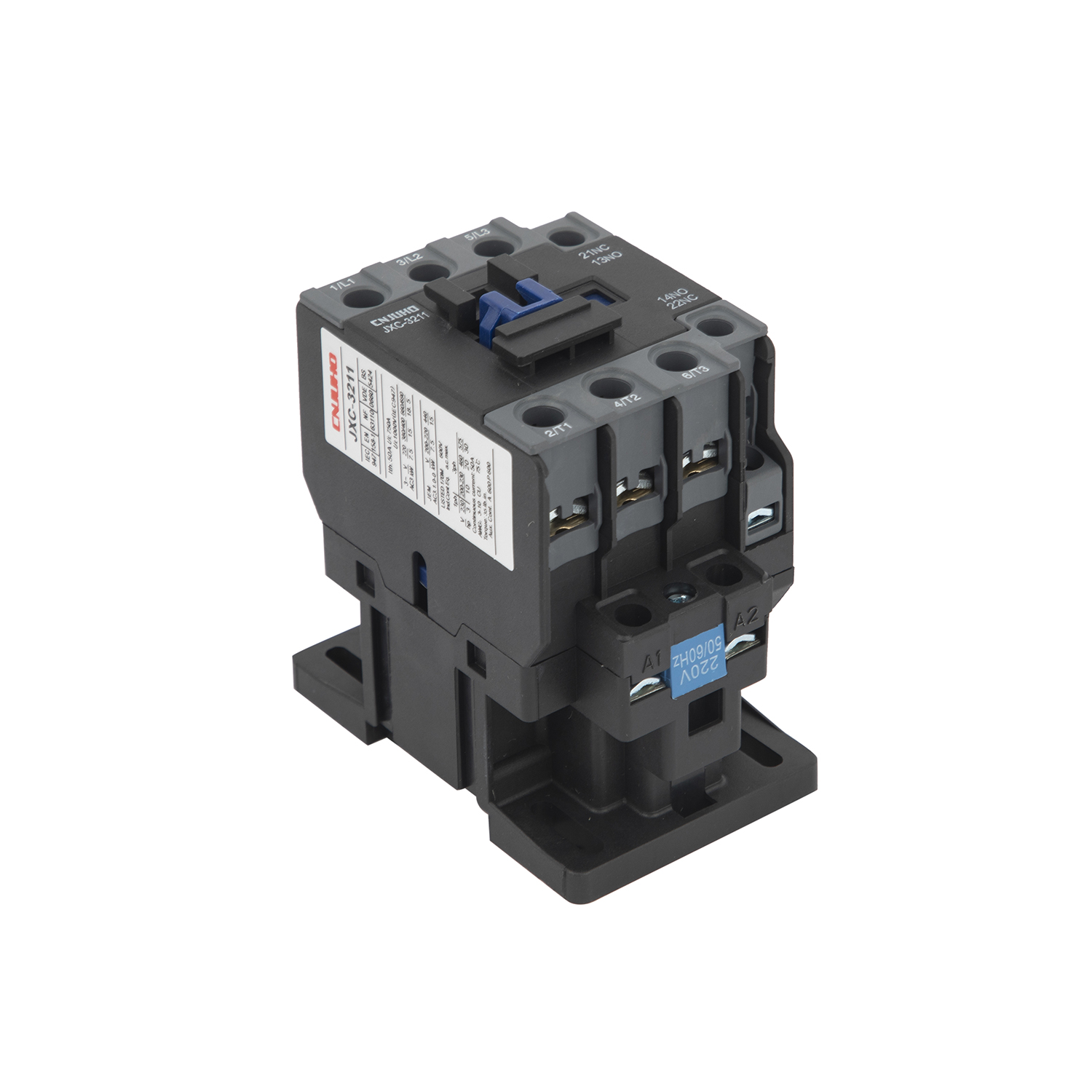

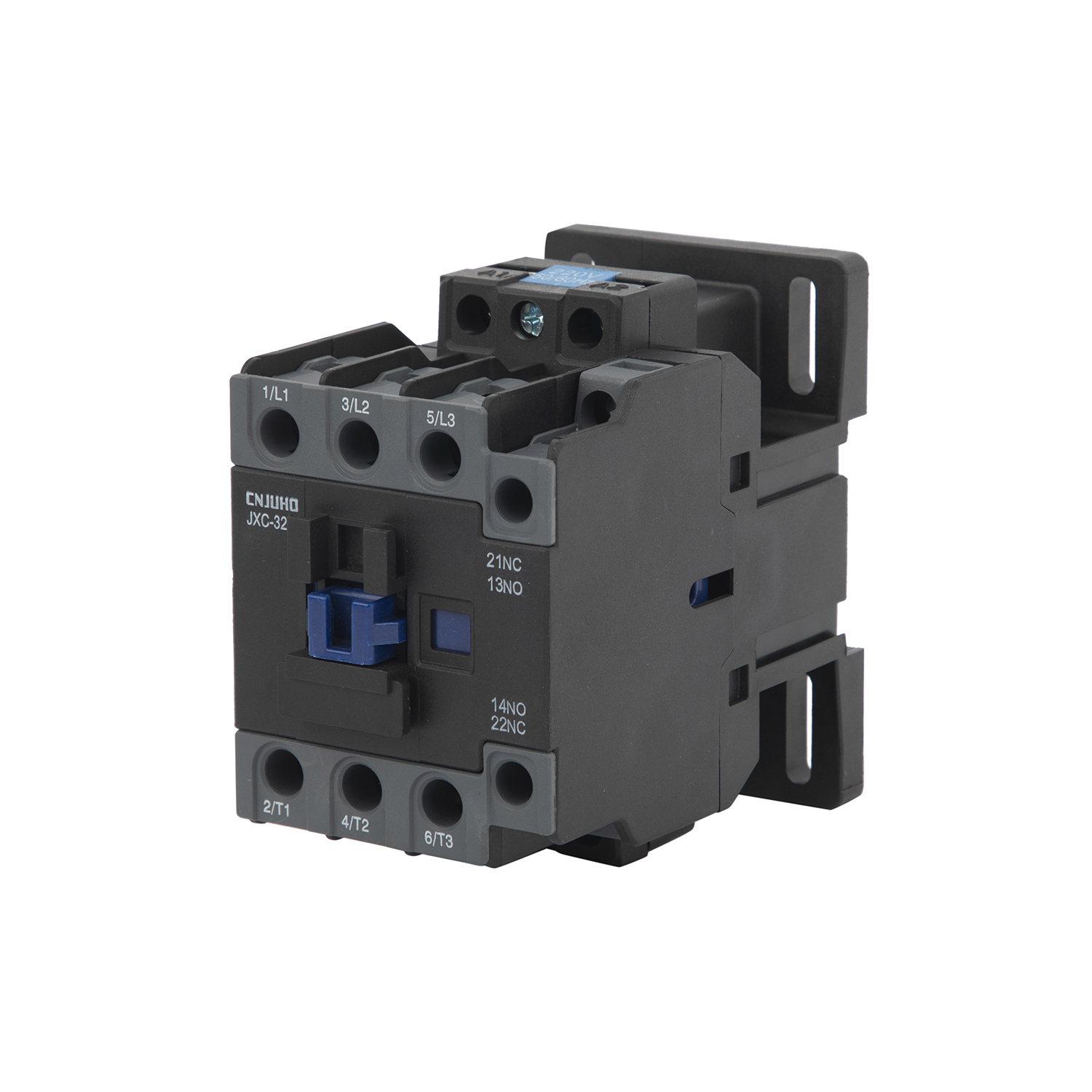

JXC0911/1211 AC Contatctor 9A/12A 220V
Feature
● Rated operation current Ie: 6A~100A
● Rated operation voltage Ue: 220V~690V
● Rated insulation voltage: 690V (JXC-06M~100), 1000V (JXC-120~630)
● Number of poles: 3P and 4P (only for JXC-06M~12M)
● Coil control method: AC (JXC-06(M)~225), DC (JXC-06M~12M),AC/DC (JXC-265~630)
● Installation method: JXC-06M~100 rail and screw installation,JXC-120~630 screw installation
Operation And Installation Conditions
| Type | Operation and installation conditions |
| Installation class | III |
| Pollution degree | 3 |
| Compliant standards | IEC/EN 60947-1, IEC/EN 60947-4-1, IEC/EN 60947-5-1 |
| Certification mark | CE |
| Enclosure protection degree | JXC-06M~38: IP20; JXC-40~100: IP10; JXC-120~630: IP00 |
| Ambient temperature | Operation temperature limits: -35°C~+70°C. Normal operation temperature range: -5°C~+40°C. The 24-hour average temperature should not exceed +35°C. For use beyond the normal operation temperature range, see "Instructions for use in abnormal conditions" in the annex. |
| Altitude | Not exceeding 2000 m above sea level |
| Atmospheric conditions | The relative humidity should not exceed 50% at the upper temperature limit of +70°C. A higher relative humidity is allowed at a lower temperature, e.g. 90% at +20°C. Special precautions should be taken against occasional condensation due to humidity variations. |
| Installation conditions | The angle between the installation surface and the vertical surface should not exceed ±5°. |
| Shock and vibration | The product should be installed in places without significant shaking,shock, and vibration. |
Parameters
Main circuit parameters and technical performance
| Contactor model | JXC-06M | JXC-09M | JXC-12M | JXC-06 | JXC-09 | JXC-12 | JXC-16 | JXC-18 | JXC-22 | |||
| Conventional thermal current Ith (A) | 20 | 20 | 20 | 20 | 20 | 25 | 25 | 32 | 32 | |||
| Rated insulation voltage Ui (V) | 690 | |||||||||||
| Rated impulse withstand voltage Uimp (kV) | 6 | 8 | ||||||||||
| Rated making capacity | Making current: 10×Ie (AC-3) or 12×Ie (AC-4) | |||||||||||
| Rated breaking capacity | Breaking current: 8×Ie (AC-3) or 10×Ie (AC-4) | |||||||||||
| Rated operation current Ie (A) |
220V/230V/240V | AC-3 | 6 | 9 | 12 | 6 | 9 | 12 | 16 | 18 | 22 | |
| AC-4 | 6 | 9 | 12 | 6 | 9 | 12 | 16 | 18 | 22 | |||
| 380V/400V/415V | AC-3 | 6 | 9 | 12 | 6 | 9 | 12 | 16 | 18 | 22 | ||
| AC-4 | 6 | 9 | 9 | 6 | 9 | 12 | 12 | 18 | 18 | |||
| 660V/690V | AC-3 | 3.8 | 4.9 | 4.9 | 3.8 | 6.6 | 8.9 | 8.9 | 12 | 14 | ||
| AC-4 | 3.8 | 4.9 | 4.9 | 3.8 | 6.6 | 8.9 | 8.9 | 12 | 12 | |||
| Rated control power |
AC-3 (kW) |
220V/230V/240V | 1.5 | 2.2 | 3 | 1.5 | 2.2 | 3 | 3 | 4 | 5.5 | |
| 380V/400V/415V | 2.2 | 4 | 5.5 | 2.2 | 4 | 5.5 | 7.5 | 7.5 | 11 | |||
| 660V/690V | 3 | 4 | 4 | 3 | 5.5 | 7.5 | 7.5 | 10 | 11 | |||
| Electrical life (cycles) | AC-3 | 1.2×10^6 | ||||||||||
| Mechanical life (cycles) | 1.2×10^6 | |||||||||||
| Main contact | 3 NO, 4 NO, 2 NO+2 NC | 3 NO | ||||||||||
| Fuse supplied for SCPD | NT00-20 | NT00-20 | NT00-25 | NT00-20 | NT00-20 | NT00-25 | NT00-25 | NT00-32 | NT00-32 | |||
| Matching thermal overload relay | NXR-12 | NXR-25 | ||||||||||
| Built-in auxiliary contact | 3P | 1 NO or 1 NC | 1 NO+1 NC | |||||||||
| 4P | - | |||||||||||
FAQ
What is the product warranty?
We warranty our materials and workmanship. Our commitment is to your satisfaction with our products. In warranty or not, it is the culture of our company to address and resolve all customer issues to everyone’s satisfaction
Do you guarantee safe and secure delivery of products?
Yes, we always use high quality export packaging. We also use specialized hazard packing for dangerous goods and validated cold storage shippers for temperature sensitive items. Specialist packaging and non-standard packing requirements may incur an additional charge.
How about the shipping fees?
The shipping cost depends on the way you choose to get the goods. Express is normally the most quickest but also most expensive way. By seafreight is the best solution for big amounts. Exactly freight rates we can only give you if we know the details of amount, weight and way. Please contact us for further information.
Q: Can I get samples?
A: Sure, please choosee from our site ,we can offer available 1-2pcs sample and add freight cost.
Q: What’s your MOQ?
A: Our MOQ usually comes to 1000 pcs, but we accept the small order quantity for test.
Contactor production engineering:
1.Excellent shell material
2.Cooper part with 85% silver contact point
3.Standard cooper coil
4.High quality magnet
Beautiful packing box
