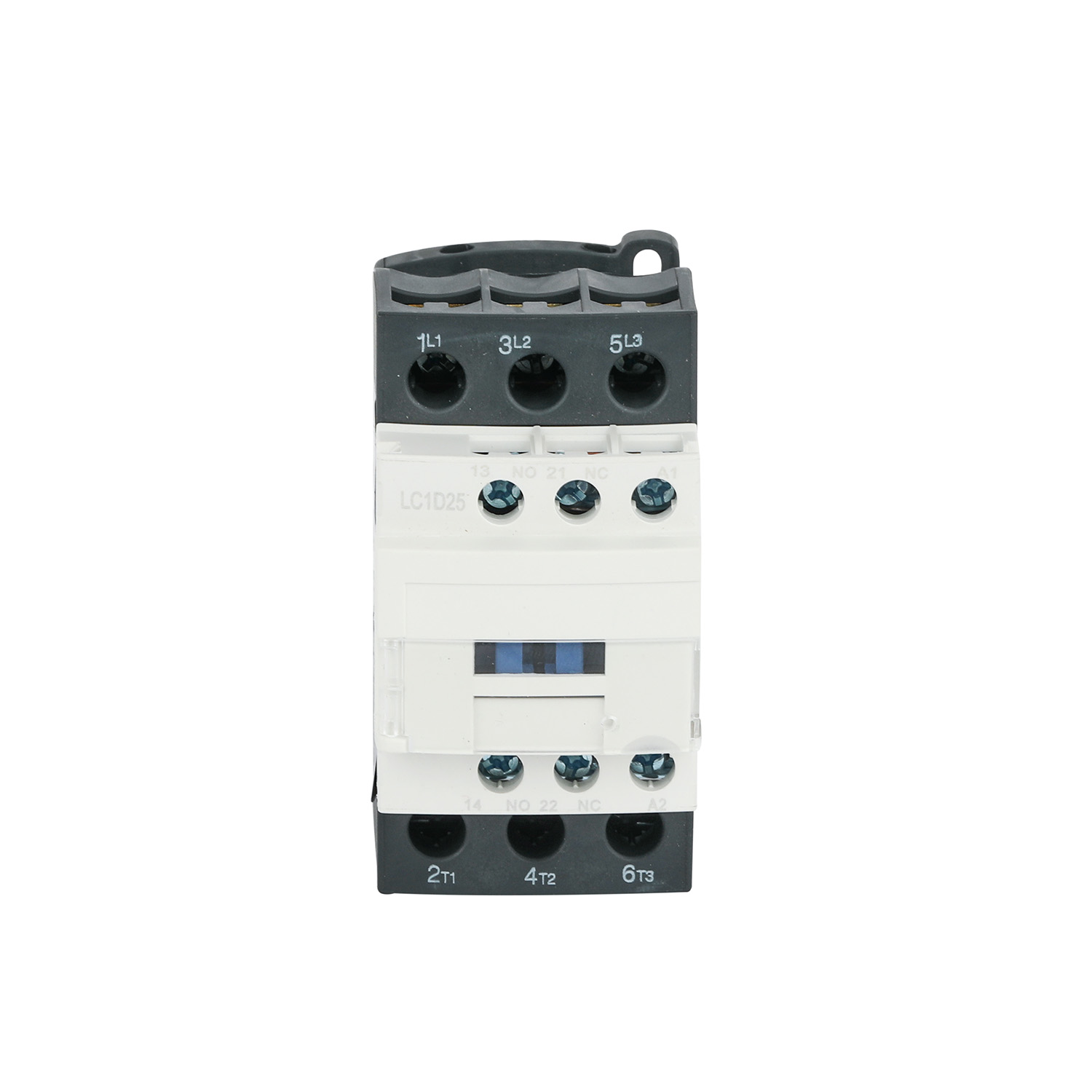

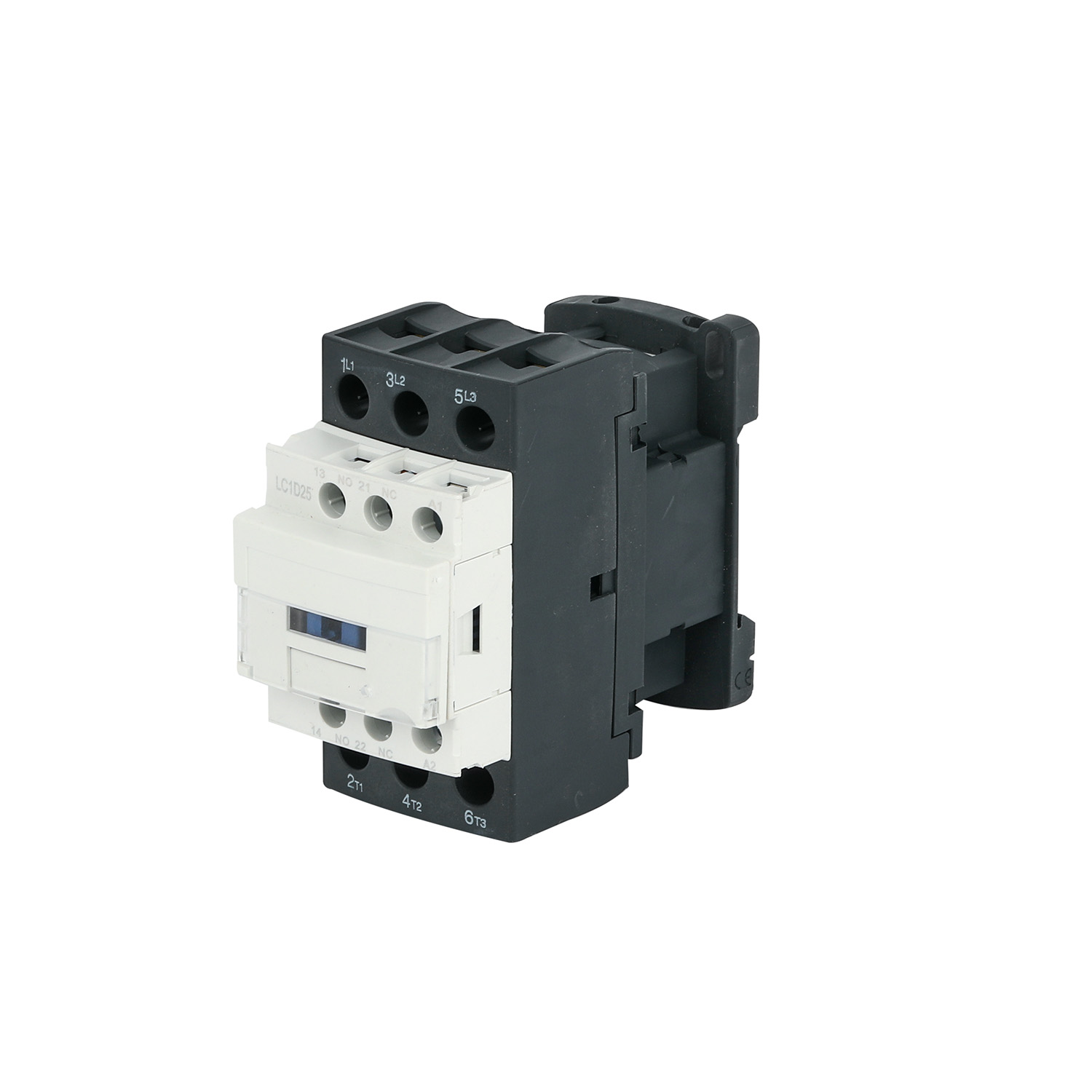

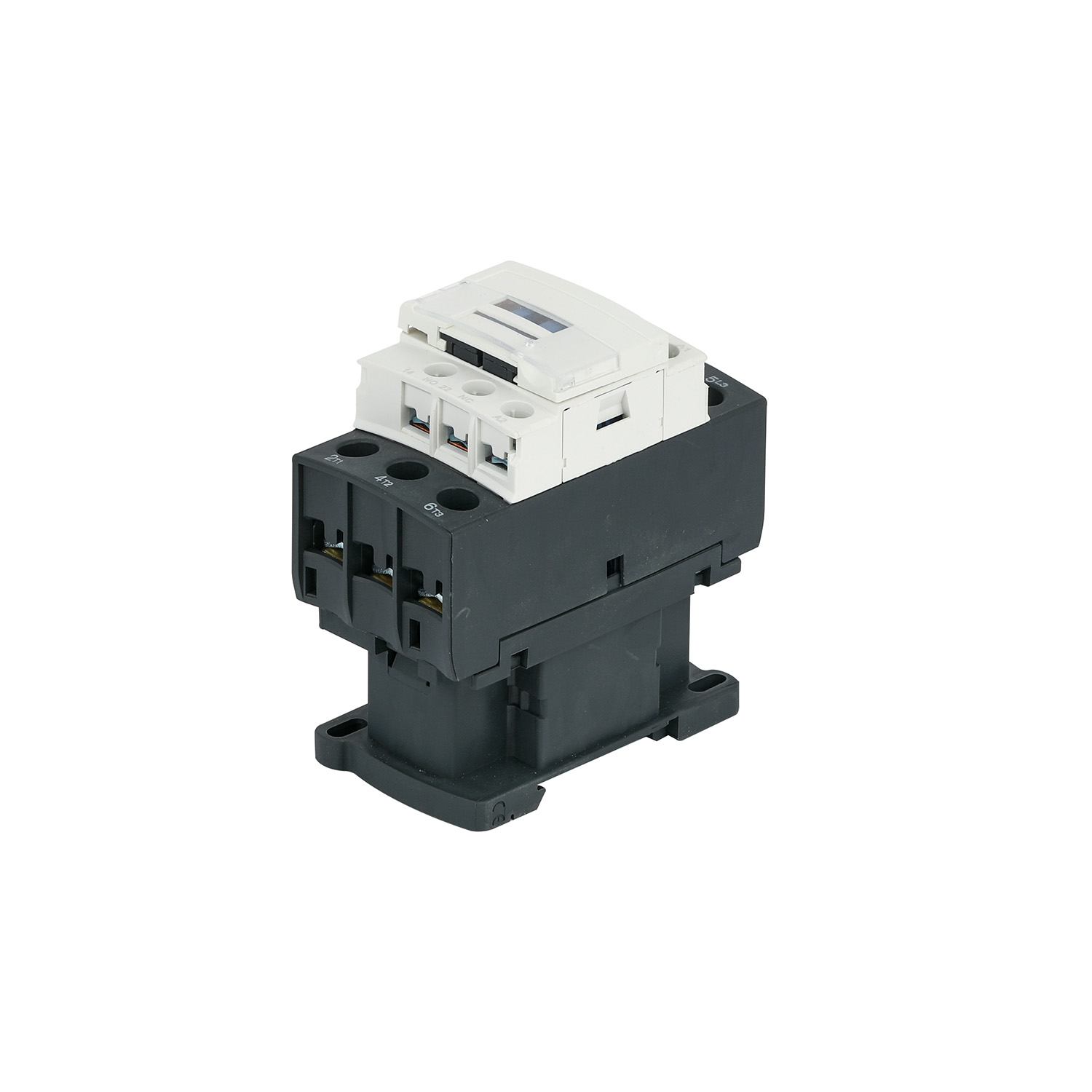

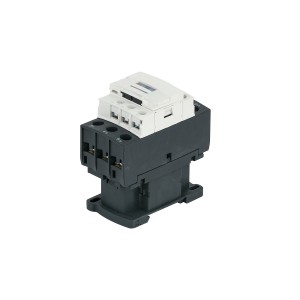

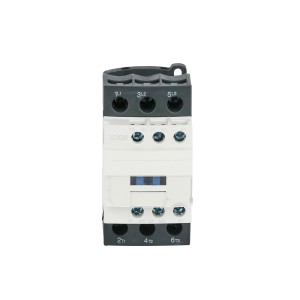

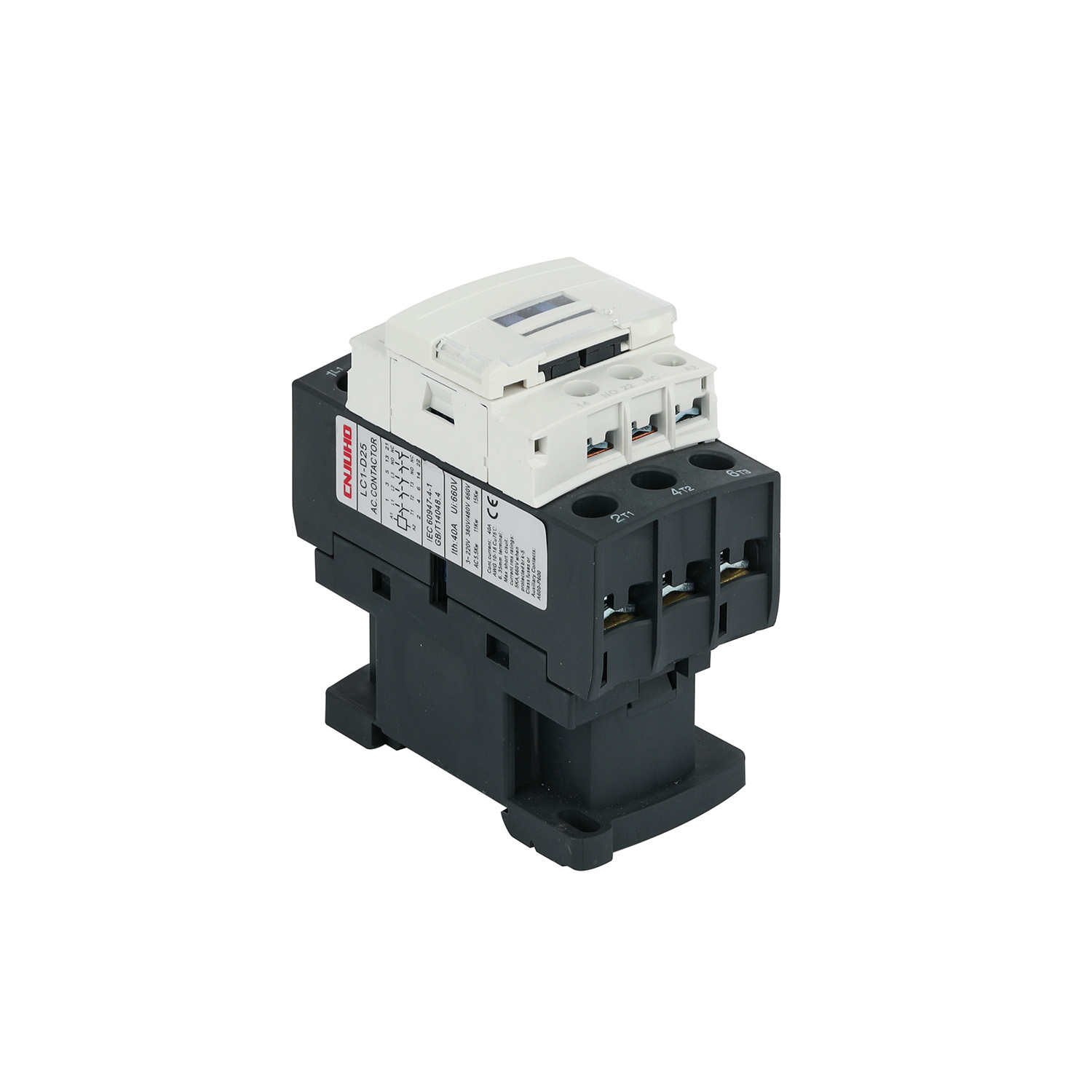

New Type AC Contactor 9A~40A 48V,220V

Short Description:

● Application: remote making & breaking circuits; protect circuit from over-load when assembling
with thermal over-load relay;frequent start-up and control ofAC contactor;
Electric life: 1000000
Mechanical life:100000
Matching fuse: RT16

Send email to us

Product Detail

More Description

Product Tags

Type Designation

Main Technical Parameter

Type	Rated insulation voltage(V)	Conventional thermal current(A)	Rated operation current(A)	Control power(kw)					No .of contacts	Remark
Type	Rated insulation voltage(V)	Conventional thermal current(A)	Rated operation current(A)	220V	380V	415V	440V	660V	No .of contacts	Remark
JLC1-DN0910	660	20	9	2.2	4	4	4	5.5	3P+NO 3P+NC	Installation method 1.with two screws 2.35mm din rail
JLC1-DN1210		20	12	3	5.5	5.5	5.5	7.5	3P+NO 3P+NC
JLC1-DN1810		32	18	4	7.5	9	9	9	3P+NO 3P+NC
JLC1-DN2510		40	25	5.5	11	11	11	15	3P+NO 3P+NC
JLC1-DN3210		50	32	7.5	15	15	15	18.5	3P+NO 3P+NC
JLC1-DN4011		60	40	11	18.5	22	22	30	3P+NO+NC	Installation method 1.with three screws 2.75mm or 35mm din rail
JLC1-DN5011		80	50	15	22	25	30	33
JLC1-DN6511		80	65	18.5	30	37	37	37
JLC1-DN8011		125	80	22	37	45	45	45
JLC1-DN9511		125	95	25	45	45	45	45

Type			JLC1-DN09	JLC1-DN12	JLC1-DN18	JLC1-DN25	JLC1-DN32	JLC1-DN40	JLC1-DN50	JLC1-DN65	JLC1-DN80	JLC1-DN95
Pick-up voltage 50/60Hz(V)			(0.85~ 1.1)Us	(0.85~ 1.1) Us	(0.85~ 1.1)Us	(0.85~ 1.1)Us	(0.85~ 1.1)Us	(0.85~ 1.1)Us	(0.85~ 1.1)Us	(0.85 ~1.1)Us	(0.85~ 1.1)Us	(0.85~ 1.1)Us
Release voltage 50/60Hz(v)			(0.2~ 0.75)Us	(0.2~ 0.75)Us	(0.2~ 0.75)Us	(0.2~ 0.75)Us	(0.2~ 0.75)Us	(0.2~ 0.75)Us	(0.2~ 0.75)Us	(0.2~ 0.75)Us	(0.2~ 0.75)Us	(0.2~ 0.75)Us
Coil power	50Hz 60Hz	Pick-up(VA)	70	70	110	110	110	200	200	200	200	200
		Holding(VA)	8	8	11	11	11	20	20	20	20	20
		Pick-up(VA)	80	80	115	115	115	200	200	200	200	200
		Holding(VA)	8	8	11	11	11	20	20	20	20	20
		Power consumption (W)	1.8~2.7	1.8~2.7	3~4	3~4	3~4	6~10	6~10	6~10	6~10	6~10

Previous: New Type AC Contactor 50A~95A 220V, 380V

Next: Magnetic Starter LE1 Series

Contactor production engineering:
1.Excellent shell material
2.Cooper part with 85% silver contact point
3.Standard cooper coil
4.High quality magnet
Beautiful packing box
