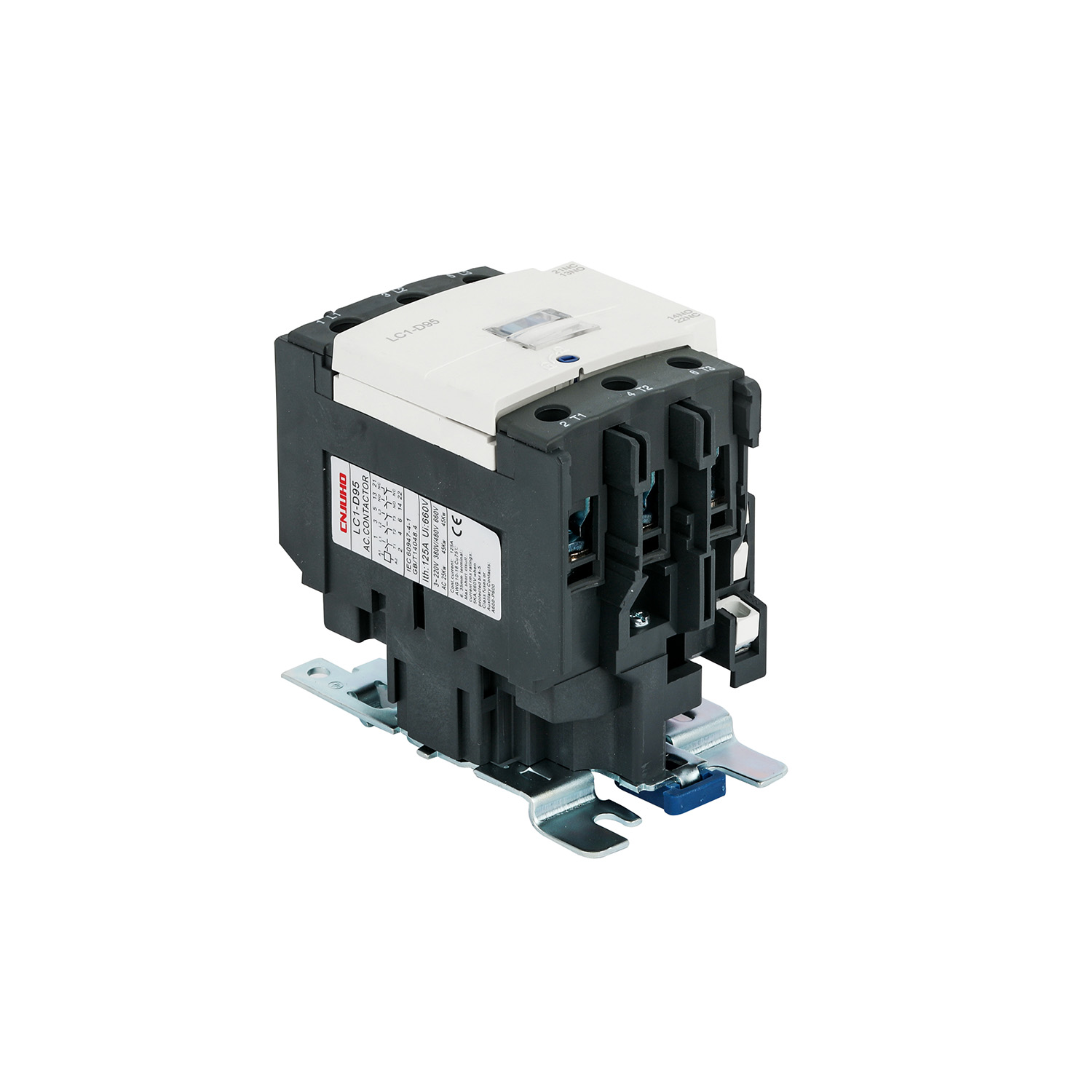

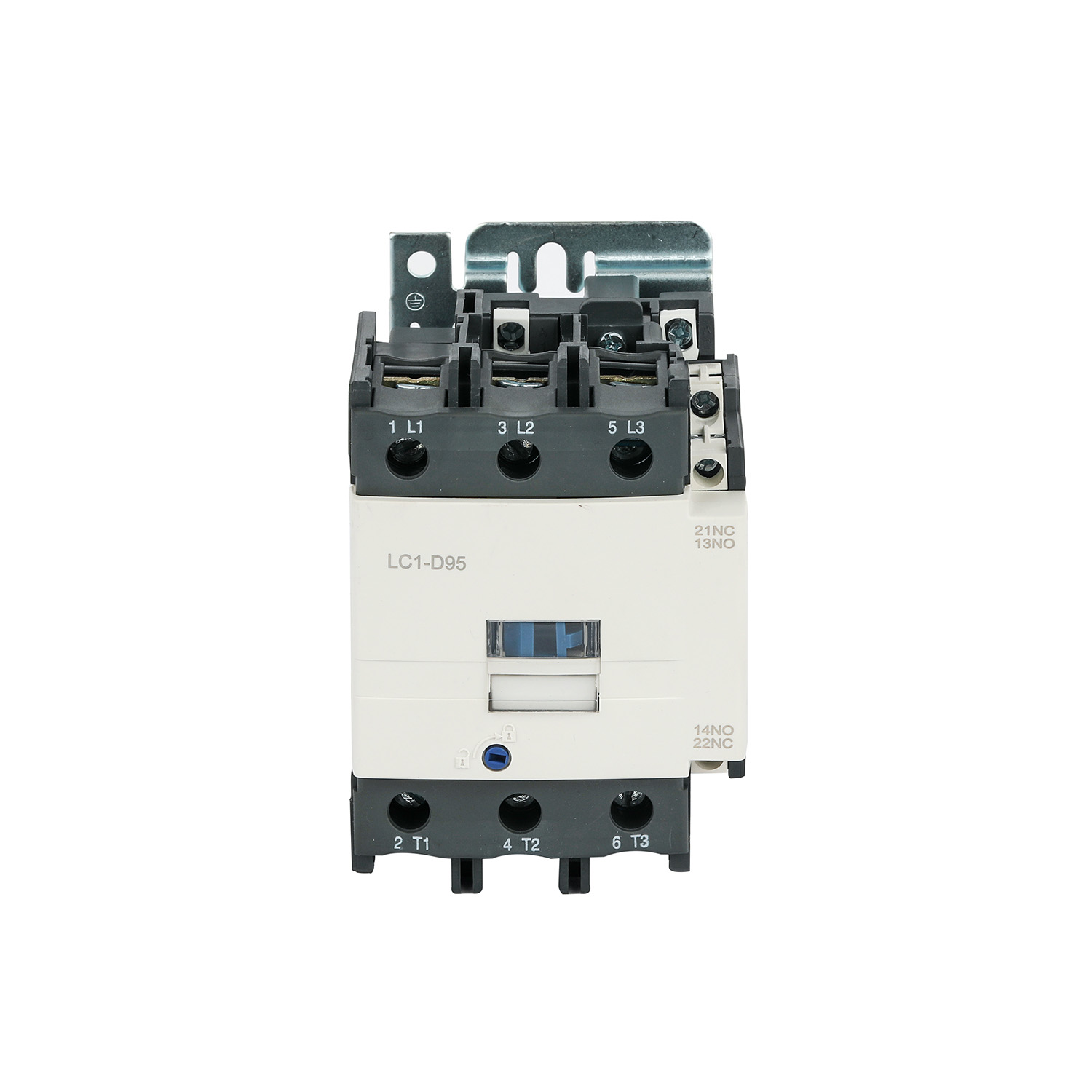

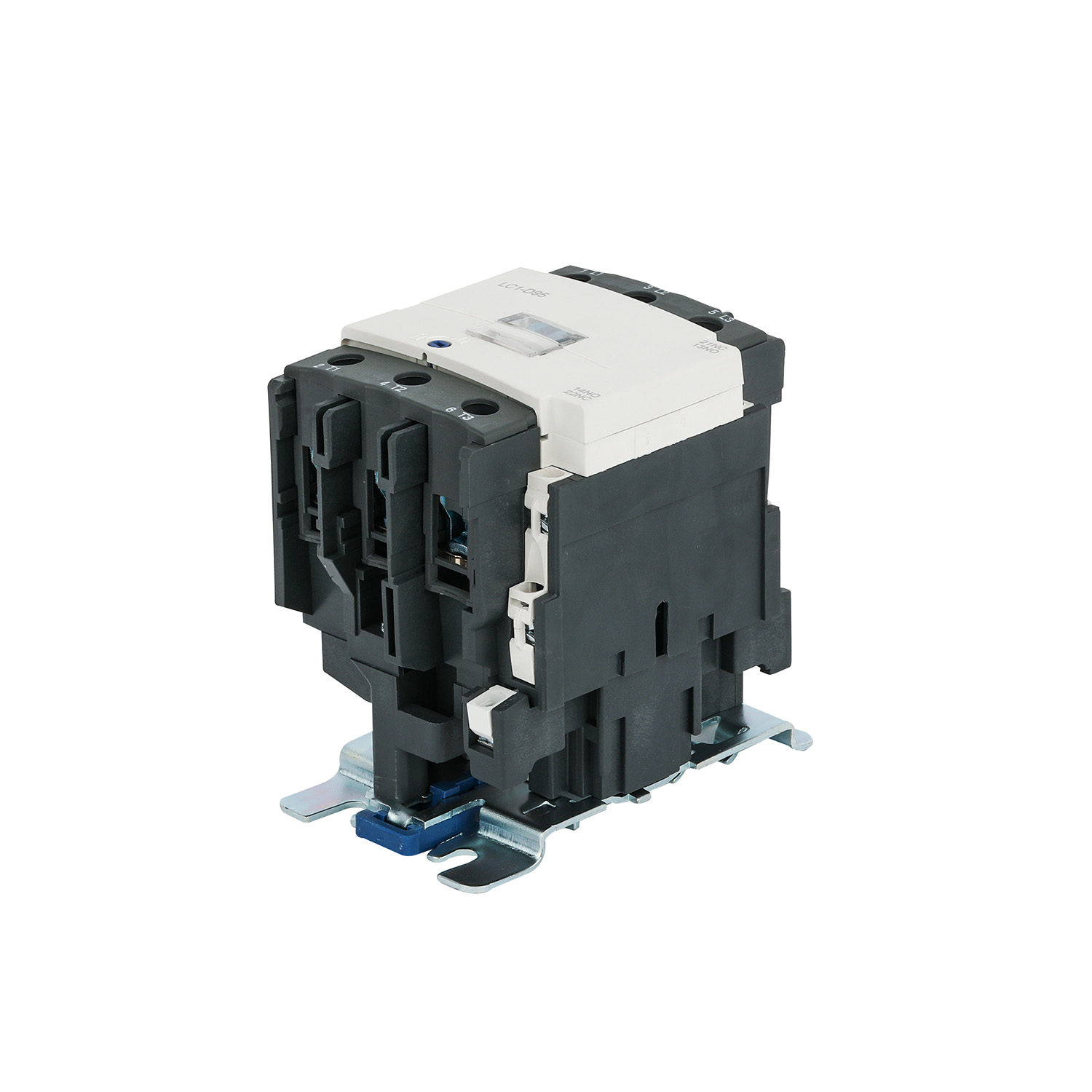

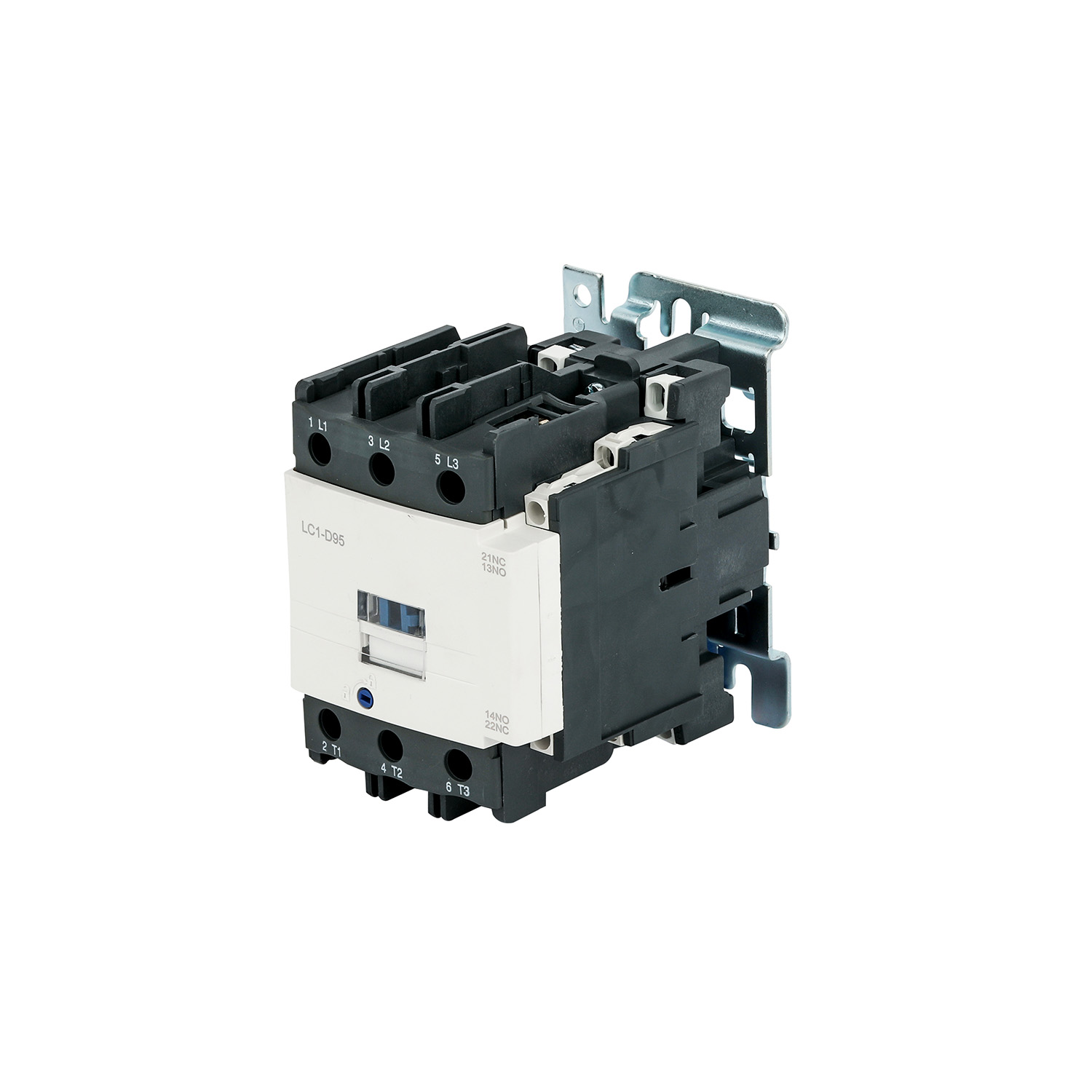

New Type AC Contactor 50A~95A 220V, 380V

Short Description:

● Application: remote making & breaking circuits; protect circuit from over-load when assembling
with thermal over-load relay;frequent start-up and control ofAC contactor;
● Electric ratings: AC50/6OHz,690v,up to 95A;
● Utilization category:AC-3,AC-4;
● Altitude:≤2000m;
● Ambient temperature: -5°C~+40°C;
● Mounting category: III;
● Mounting condlitions: inclination between the mounting planeand the verticall plane should not
exceed ±5°;
● Standard: IEC/EN 60947-4-1, IEC/EN 60947-5-1.
● Gontrol Goil valtage(AC Goil Operation).


Product Detail

More Description

Product Tags

Type Designation

product2

Main Technical Parameter

Type Rated
insulation
voltage(V)
Conventional
thermal
current(A)
Rated
operation
current(A)
Control power(kw) No .of
contacts
Remark
220V 380V 415V 440V 660V
JLC1-DN0910 660 20 9 2.2 4 4 4 5.5 3P+NO
3P+NC
Installation
method
1.with two
screws
2.35mm
din rail
JLC1-DN1210 20 12 3 5.5 5.5 5.5 7.5 3P+NO
3P+NC
JLC1-DN1810 32 18 4 7.5 9 9 9 3P+NO
3P+NC
JLC1-DN2510 40 25 5.5 11 11 11 15 3P+NO
3P+NC
JLC1-DN3210 50 32 7.5 15 15 15 18.5 3P+NO
3P+NC
JLC1-DN4011 60 40 11 18.5 22 22 30 3P+NO+NC Installation
method
1.with three
screws
2.75mm or
35mm
din rail
JLC1-DN5011 80 50 15 22 25 30 33
JLC1-DN6511 80 65 18.5 30 37 37 37
JLC1-DN8011 125 80 22 37 45 45 45
JLC1-DN9511 125 95 25 45 45 45 45
Type JLC1-DN09 JLC1-DN12 JLC1-DN18 JLC1-DN25 JLC1-DN32 JLC1-DN40 JLC1-DN50 JLC1-DN65 JLC1-DN80 JLC1-DN95
Pick-up voltage
50/60Hz(V)
(0.85~
1.1)Us
(0.85~
1.1) Us
(0.85~
1.1)Us
(0.85~
1.1)Us
(0.85~
1.1)Us
(0.85~
1.1)Us
(0.85~
1.1)Us
(0.85
~1.1)Us
(0.85~
1.1)Us
(0.85~
1.1)Us
Release voltage
50/60Hz(v)
(0.2~
0.75)Us
(0.2~
0.75)Us
(0.2~
0.75)Us
(0.2~
0.75)Us
(0.2~
0.75)Us
(0.2~
0.75)Us
(0.2~
0.75)Us
(0.2~
0.75)Us
(0.2~
0.75)Us
(0.2~
0.75)Us
Coil power 50Hz

60Hz

Pick-up(VA) 70 70 110 110 110 200 200 200 200 200
Holding(VA) 8 8 11 11 11 20 20 20 20 20
Pick-up(VA) 80 80 115 115 115 200 200 200 200 200
Holding(VA) 8 8 11 11 11 20 20 20 20 20
Power
consumption
(W)
1.8~2.7 1.8~2.7 3~4 3~4 3~4 6~10 6~10 6~10 6~10 6~10
