LE1-DN new type DOL 380vV/415V

Short Description:

Main Parameters And Technical Performance

● The main technical performance indicators and component equipment of the starter (see Table 1);
● The starter rated control circuit voltage Us is: AC 50/60Hz, 24V, 42V, 110V, 220/230V, 240V,
380/400V, 415V, 440V, 480V, 6OOV;
● Range of action:
○ Pull-in voltage: 50 or 60H 80%Us-110% Us; 50/60Hz 85%Us~110%Us;
○ Release voltage: 20%Us-75%Us
● The operating range of the starter with thermal (overload) relay has the operating characteristics
of thermal relay;

Send email to us

Product Detail

Product Tags

Technical Parameters

Type	Maximum power AC3 duty(KW)						Rated current(A)	Type of enclosure	Suitable Thermal Relay(A)
Type	220V 230V	380V 400V	415V	440V	500V	660V 690V	Rated current(A)	Type of enclosure	Suitable Thermal Relay(A)
JLE1-DN09	2.2	4	4	4	5.5	5.5	9	IP42 IP65	JLR2-D1312 JLR2-D1314
JLE1-DN12	3	5.5	5.5	5.5	7.5	7.5	12	IP42 IP55	JLR2-D1316
JLE1-DN18	4	7.5	9	9	10	10	18	IP42 IP55	JLR2-D1321
JLE1-DN25	5.5	11	11	11	15	15	25	IP42 IP55	JLR2-D1322 JLR2-D2353
JLE1-DN32	7.5	15	15	15	18.5	18.5	32	IP55	JLR2-D2355
JLE1-DN40	11	18.5	22	22	22	30	40	IP55	JLR2-D3353 JLR2-D3355
JLE1-DN50	15	22	25	30	30	33	50	IP55	JLR2-D3357 JLR2-D3359
JLE1-DN65	18.5	30	37	37	37	37	65	IP55	JLR2-D3361
JLE1-D80	22	37	45	45	55	45	80	IP55	JLR2-D3363 JLR2-D3365
JLE1-DN95	25	45	45	45	55	45	95	IP55	JLR2-D3365
Enclosure			LE1-D09 and D12			Double insulated, protexted to IP 429(3) or to IP 659(4)
			LE1-D18 and D25			Double insulated, protexted to IP 427(3) or to IP 557(4)
			LE1-D32…D95			Metal, IP 55 to IP 559

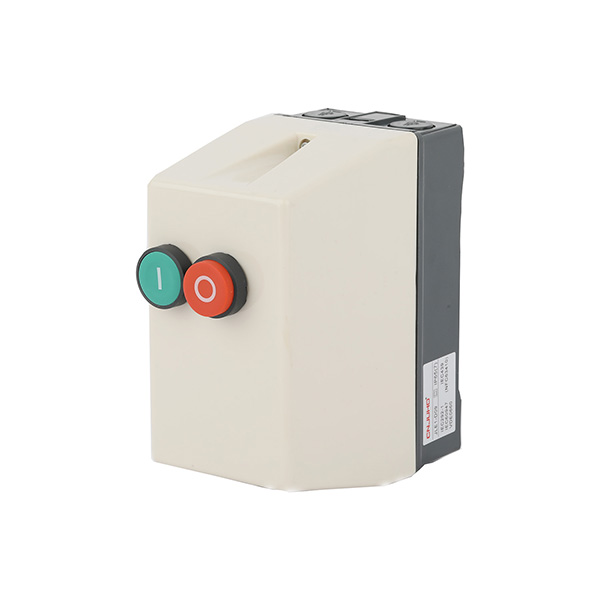

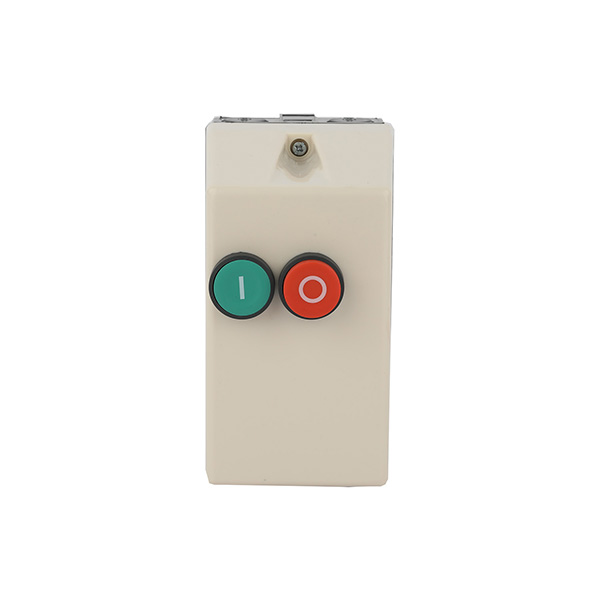

Control(2 pushbuttons mounted on enclosure cover)			LE1-D09…D95			1 green Start button “I” 1red Stop/Reset button”O”
Connections			LE1-D32…D95			Pre-wired power and control circuit connections
Standard control circuit voltages
Volts	24	42	48	110	220/230	230	240	380/400	440
50/60HZ	B7	D7	E7	F7	M7	P7	U7	Q7
