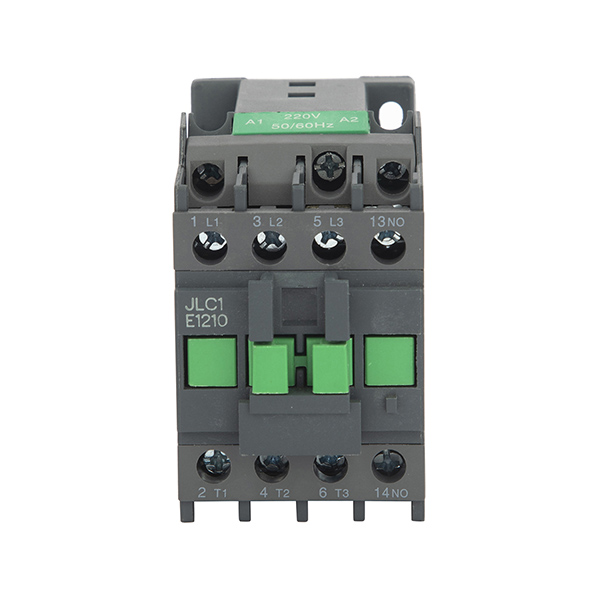

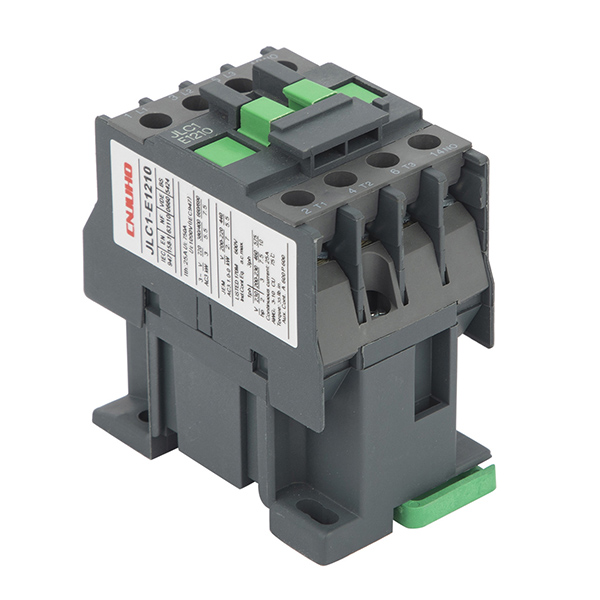

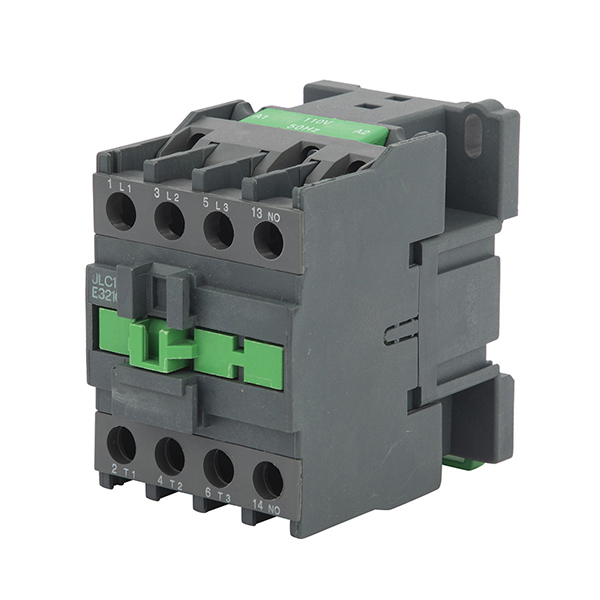

LC1E09-32 Ecnomic type magnetic contactors

Short Description:

JLC1E09-32 series 660V 9-95A AC Contactor is applicable at the line of AC 50/60 Hz, rated voltage up to 660V and rated current up to 32A for remote switch, breaking and frequent starting, controlling the AC motor. Moreover, the contactor can act as the time-delay contactor, change over contactor, star-delta starter by the accessories addition such as addition of modular auxiliary contact set. Air time delay head, mechanical interlock mechanism, etc.

Send email to us

Product Detail

Product Tags

Type	Rated insulation voltage(V)	Conventional thermal current(A)	Rated operation current(A)	Control power(kw)					No .of contacts
Type	Rated insulation voltage(V)	Conventional thermal current(A)	Rated operation current(A)	220V	380V	415V	440V	660V	No .of contacts
JLC1-E0910	660	20	9	2.2	4	4	4	5.5	3P+NO 3P+NC
JLC1-E1210		20	12	3	5.5	5.5	5.5	7.5	3P+NO 3P+NC
JLC1-E1810		32	18	4	7.5	9	9	9	3P+NO 3P+NC
JLC1-E2510		40	25	5.5	11	11	11	15	3P+NO 3P+NC
JLC1-E3210		50	32	7.5	15	15	15	18.5	3P+NO 3P+NC
JLC1-E4011		60	40	11	18.5	22	22	30	3P+NO+NC
JLC1-E5011		80	50	15	22	25	30	33
JLC1-E6511		80	65	18.5	30	37	37	37
JLC1-E8011		125	80	22	37	45	45	45
JLC1-E9511		125	95	25	45	45	45	45
