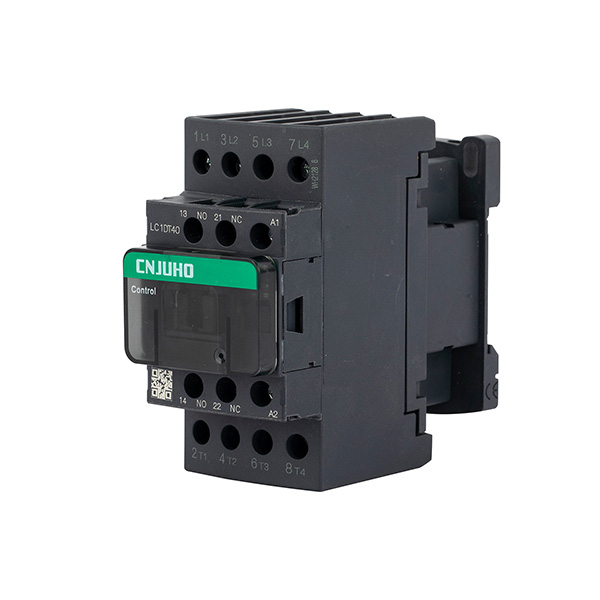

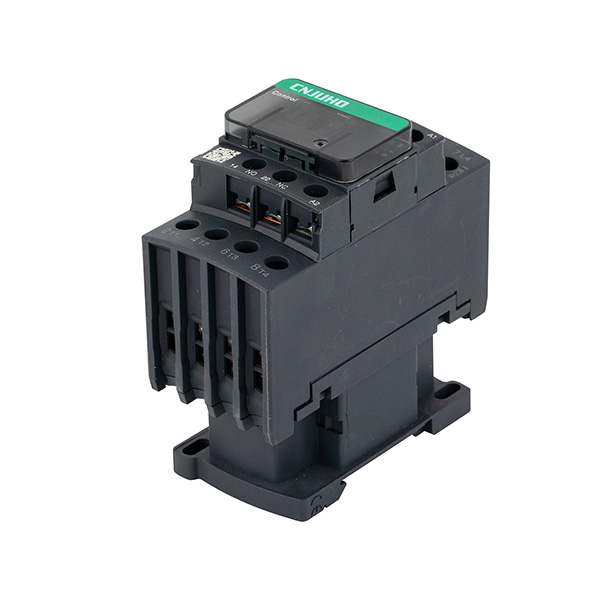

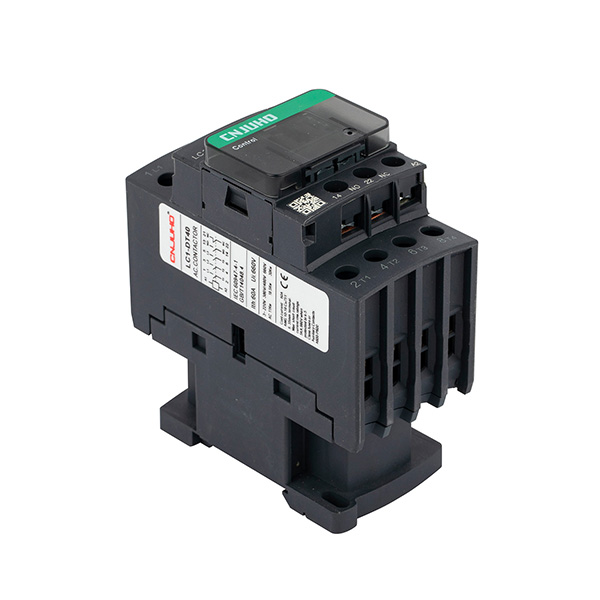

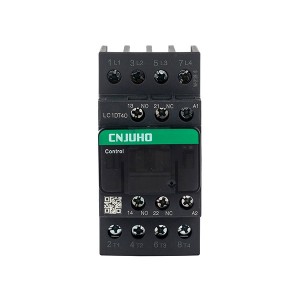

LC1DT40 4P dc contactor with 4N.O

Short Description:

4P CONTACTOR 40A AC-1 240VAC COIL

TeSys D contactor, 4P(4 NO), AC-1, <= 440 V, 40 A, 240 V AC 50/60 Hz coil TeSys D contactors have been designed for perfect integration into control systems. They can be used to create motor starters for almost any type of application. TeSys D contactors are available in 13 contactor ratings for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. This 4 pole IEC contactor can be mounted on DIN rail or mounted directly to a panel. Contactor has four normally open power contacts. Power contacts have a 40A resistive load rating. Contactor is supplied with a 240 VAC 50/60 Hz coil. Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 3.58 inches tall, 1.77 inches wide and 3.90 inches deep. It weighs 0.94 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards. Contactor also meets the requirements of RoHS/REACh making it a Green Premium product.


Product Detail

Product Tags

Parameter data sheet

Product or Component Type Contactor
Device short name LC1DT40M7
Contactor application Resistive load
Utilisation category AC-1
Poles description 4P
[Ue] rated operational voltage Power circuit <= 690 V AC 25…400 Hz;Power circuit <= 300 V DC
[Ie] rated operational current 40 A 140 °F (60 °C)) <= 440 V AC AC-1 power circuit
[Uc] control circuit voltage 240 V AC 50/60 Hz
Pole contact composition 4 NO
Protective cover

with

[Ith] conventional free air thermal

current

10 A 140 °F (60 °C) signalling circuit;40 A 140 °F (60 °C) power circuit
Irms rated making capacity 140 A  AC for signalling circuit conforming to IEC 60947-5-1 250 A DC for signalling circuit conforming to IEC 60947-5-1 450 A at 440 V for power circuit conforming to IEC 60947
Rated breaking capacity 450 A at 440 V for power circuit conforming to IEC 60947
[Icw] rated short-time withstand

current

50 A 104 °F (40 °C) – 10 min power circuit;120 A 104 °F (40 °C) – 1 min power circuit;240 A 104 °F (40 °C) – 10 s power circuit;380 A 104 °F (40 °C) – 1 s power circuit;100 A – 1 s signalling circuit;120 A – 500 ms signalling circuit;140 A – 100 ms signalling circuit
Associated fuse rating 10 A gG signalling circuit IEC 60947-5-1;63 A gG <= 690 V type 1 power circuit;40 A gG <= 690 V type 2 power circuit
Average impedance 2 mOhm – Ith 40 A 50 Hz for power circuit
Power dissipation per pole 3.2 W AC-1
[Ui] rated insulation voltage Power circuit: 690 V conforming to IEC 60947-4-1 Power circuit: 600 V CSA certified Power circuit: 600 V UL certified Signalling circuit: 690 V conforming to IEC 60947-1 Signalling circuit: 600 V CSA certified Signalling circuit: 600 V UL certified
Overvoltage category

III

pollution degree

3

[Uimp] rated impulse withstand voltage

6 kV IEC 60947

safety reliability level

B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1;B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1

mechanical durability

15 Mcycles

electrical durability

1.4 Mcycles 40 A AC-1 <= 440 V
Control circuit type AC 50/60 Hz

coil technology

Without built-in suppressor module
Control circuit voltage limits 0.3…0.6 Uc -40…158 °F (-40…70 °C) drop-out AC 50/60 Hz;0.8…1.1 Uc -40…140 °F (-40…60 °C) operational AC 50 Hz;0.85…1.1 Uc -40…140 °F (-40…60 °C) operational AC 60 Hz;1…1.1 Uc 140…158 °F (60…70 °C) operational AC 50/60 Hz
Inrush power in VA 70 VA 60 Hz 0.75 68 °F (20 °C));70 VA 50 Hz 0.75 68 °F (20 °C))
Hold-in power consumption in VA 7.5 VA 60 Hz 0.3 68 °F (20 °C));7 VA 50 Hz 0.3 68 °F (20 °C))
Heat dissipation 2…3 W at 50/60 Hz
Operating time 12…22 ms closing

4…19 ms opening

Maximum operating rate 3600 cyc/h at 60 °C

tightening torque

Control circuit 15.05 lbf.in (1.7 N.m) EverLink BTR screw connectors flat Ø 6 mm;Control circuit 15.05 lbf.in (1.7 N.m) EverLink BTR screw connectors Philips No 2;Power circuit 15.05 lbf.in (1.7 N.m) EverLink BTR screw connectors flat Ø 6 mm;Power circuit 15.05 lbf.in (1.7 N.m) EverLink BTR screw connectors Philips No 2;Control circuit 15.05 lbf.in (1.7 N.m) EverLink BTR screw connectors pozidriv No 2;Power circuit 22.13 lbf.in (2.5 N.m) EverLink BTR screw connectors pozidriv No 2

auxiliary contact composition

1 NO + 1 NC

auxiliary contacts type

Mechanically linked 1 NO + 1 NC IEC 60947-5-1;Mirror contact 1 NC IEC 60947-4-1

signalling circuit frequency

25…400 Hz

minimum switching voltage

17 V signalling circuit

minimum switching current

5 mA signalling circuit

insulation resistance

> 10 MOhm signalling circuit

non-overlap time

1.5 ms on de-energisation between NC and NO contact;1.5 ms on energisation between NC and NO contact

Mounting Support

Plate;Rail

standards

CSA C22.2 No 14;EN 60947-4-1;EN 60947-5-1;IEC 60947-4-1;IEC 60947-5-1;UL 508;IEC 60335-1

Product Certifications

LROS (Lloyds register of shipping);CSA;UL;GOST;DNV;CCC;GL;BV;RINA;UKCA

IP degree of protection

IP20 front face IEC 60529

protective treatment

THIEC 60068-2-30

climatic withstand

IACS E10 exposure to damp heat;IEC 60947-1 Annex Q category D exposure to damp heat

permissible ambient air temperature around the device

-40…140 °F (-40…60 °C);140…158 °F (60…70 °C) with derating

operating altitude

0…9842.52 ft (0…3000 m)

fire resistance

1562 °F (850 °C) IEC 60695-2-1

flame retardance

V1 conforming to UL 94

mechanical robustness

Vibrations contactor open 2 Gn;5…300 Hz);Vibrations contactor closed 4 Gn;5…300 Hz);Shocks contactor open 10 Gn for 11 ms);Shocks contactor closed 15 Gn for 11 ms)

Height*Width*Depth

3.6 in (91 mm)x1.8 in (45 mm)x3.9 in (99 mm)

Net Weight

0.937 lb(US) (0.425 kg)

Category

22355-CTR;TESYS D;OPEN;9-38A DC

Discount Schedule

I12

GTIN

3389110353075

Returnability

Yes

Country of origin

China

Unit Type of Package 1

PCE

Number of Units in Package

50PCS/CTN

Warranty

18 months
