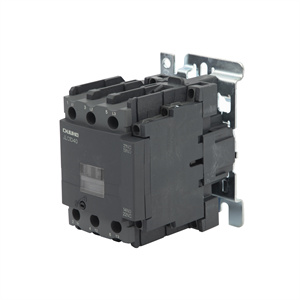

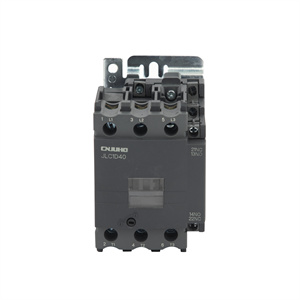

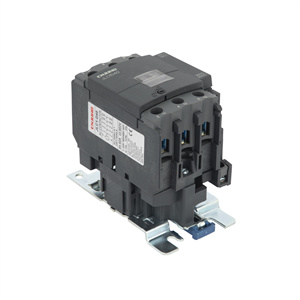

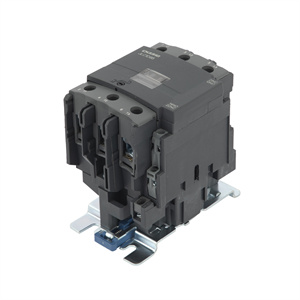

LC1D40/50/65 new material ac contactor

Short Description:

New type design magnetic ac contactor, suit to rated ampere from 9A to 95A,50/60Hz, voltage can be 48V/AC,

24V/AC,110V/AC,220V/AC,380V/AC,415V/AC,440V/AC

Electric life: 1000000
Mechanical life:100000


Product Detail

Product Tags

Application

New type design magnetic ac contactor, suit to rated ampere from 9A to 95A,50/60Hz, voltage can be 48V/AC,

24V/AC,110V/AC,220V/AC,380V/AC,415V/AC,440V/AC

Electric life: 1000000
Mechanical life:100000

Main parameter

Type Rated
insulation
voltage(V)
Conventional
thermal
current(A)
Rated
operation
current(A)
Control power(kw) No .of
contacts
Remark
220V 380V 415V 440V 660V
JLC1D09 660 20 9 2.2 4 4 4 5.5 3P+NO
3P+NC
Installation
method
1.with two
screws
2.35mm
din rail
JLC1D12 20 12 3 5.5 5.5 5.5 7.5 3P+NO
3P+NC
JLC1D18 32 18 4 7.5 9 9 9 3P+NO
3P+NC
JLC1D25 40 25 5.5 11 11 11 15 3P+NO
3P+NC
JLC1D32 50 32 7.5 15 15 15 18.5 3P+NO
3P+NC
JLCD40 60 40 11 18.5 22 22 30 3P+NO+NC Installation
method
1.with three
screws
2.75mm or
35mm
din rail
JLC1D50 80 50 15 22 25 30 33
JLC1D65 80 65 18.5 30 37 37 37
JLC1D80 125 80 22 37 45 45 45
JLC1D95 125 95 25 45 45 45 45
Type JLC1D09 JLC1D12 JLC1D18 JLCD25 JLC1D32 JLC1D40 JLC1D50 JLC1D65 JLCD80 JLCD95
Pick-up voltage
50/60Hz(V)
(0.85~
1.1)Us
(0.85~
1.1) Us
(0.85~
1.1)Us
(0.85~
1.1)Us
(0.85~
1.1)Us
(0.85~
1.1)Us
(0.85~
1.1)Us
(0.85
~1.1)Us
(0.85~
1.1)Us
(0.85~
1.1)Us
Release voltage
50/60Hz(v)
(0.2~
0.75)Us
(0.2~
0.75)Us
(0.2~
0.75)Us
(0.2~
0.75)Us
(0.2~
0.75)Us
(0.2~
0.75)Us
(0.2~
0.75)Us
(0.2~
0.75)Us
(0.2~
0.75)Us
(0.2~
0.75)Us
Coil power 50Hz60Hz Pick-up(VA) 70 70 110 110 110 200 200 200 200 200
Holding(VA) 8 8 11 11 11 20 20 20 20 20
Pick-up(VA) 80 80 115 115 115 200 200 200 200 200
Holding(VA) 8 8 11 11 11 20 20 20 20 20
Power
consumption
(W)
1.8~2.7 1.8~2.7 3~4 3~4 3~4 6~10 6~10 6~10 6~10 6~10
