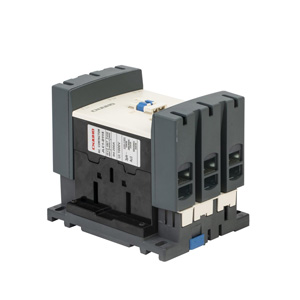

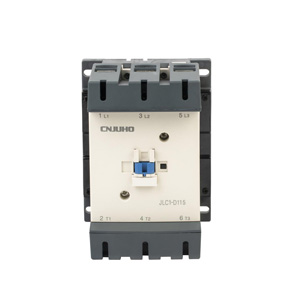

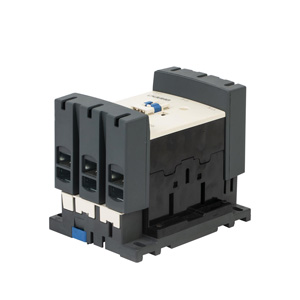

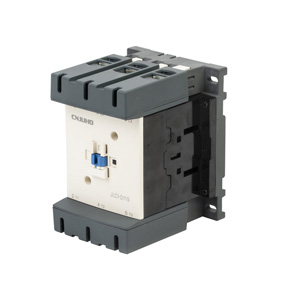

LC1D115~620 Magnetic ac contactor 115~620A 380V/220V

Short Description:

New LC1D115~620 Series Contactors & Reversing Contactors up to 150A for Inductive MotorS and 250A for Resistive Loads:
The LC1D115/150 contactors and overload relays are the largest selling line of contactors and starters in the world. They offer high reliability with long mechanical and electrical life and the most complete line of accessories in the industry. TeSys D contactors are available in 11 contactor ratings for the USA market for inductive motor applications from 9 up to 150 full-load amps and resistive loads up to 200 A. Designed to control and provide overload protection to motors rated up to 100 HP at 480 VAC or 125 HP at 600 VAC, TeSys D meets your needs for a majority of motor starter applications. Read about TeSys D and Type 2 Coordinated Protection.

Send email to us

Product Detail

Product Tags

LC1-D115~620
Type		LC1-D115	LC1-D150	LC1-D170	LC1-D205	LC1-D245	LC1-D300	LC1-D410	LC1-D475	LC1-D620
Rated workingcurrent (A)	AC3	115	150	170	205	245	300	410	475	620
Rated workingcurrent (A)	AC4	52	60	75	85	105	117	138	147	180
Standard powerratings of 3-phase motors50/60Hz incategory AC-3	220/230V	30	40	55	63	75	100	110	147	200
	380/400V	55	75	90	110	132	160	220	265	335
	415V	59	80	100	110	132	180	220	280	375
	500V	75	90	110	129	160	200	250	355	400
	660/690V	80	100	110	129	160	220	280	355	450
Rated heat current (A)		200	250	250	275	315	400	500	700	1000
Electrical life	AC3 (x104)	200	60	60	50	50	50	30	30	20
Electrical life	AC4 (x104)	15	15	15	15	15	15	8	8	5
Mechanical life (x104)	300	300	300	300	300	300	300	100	100	100
