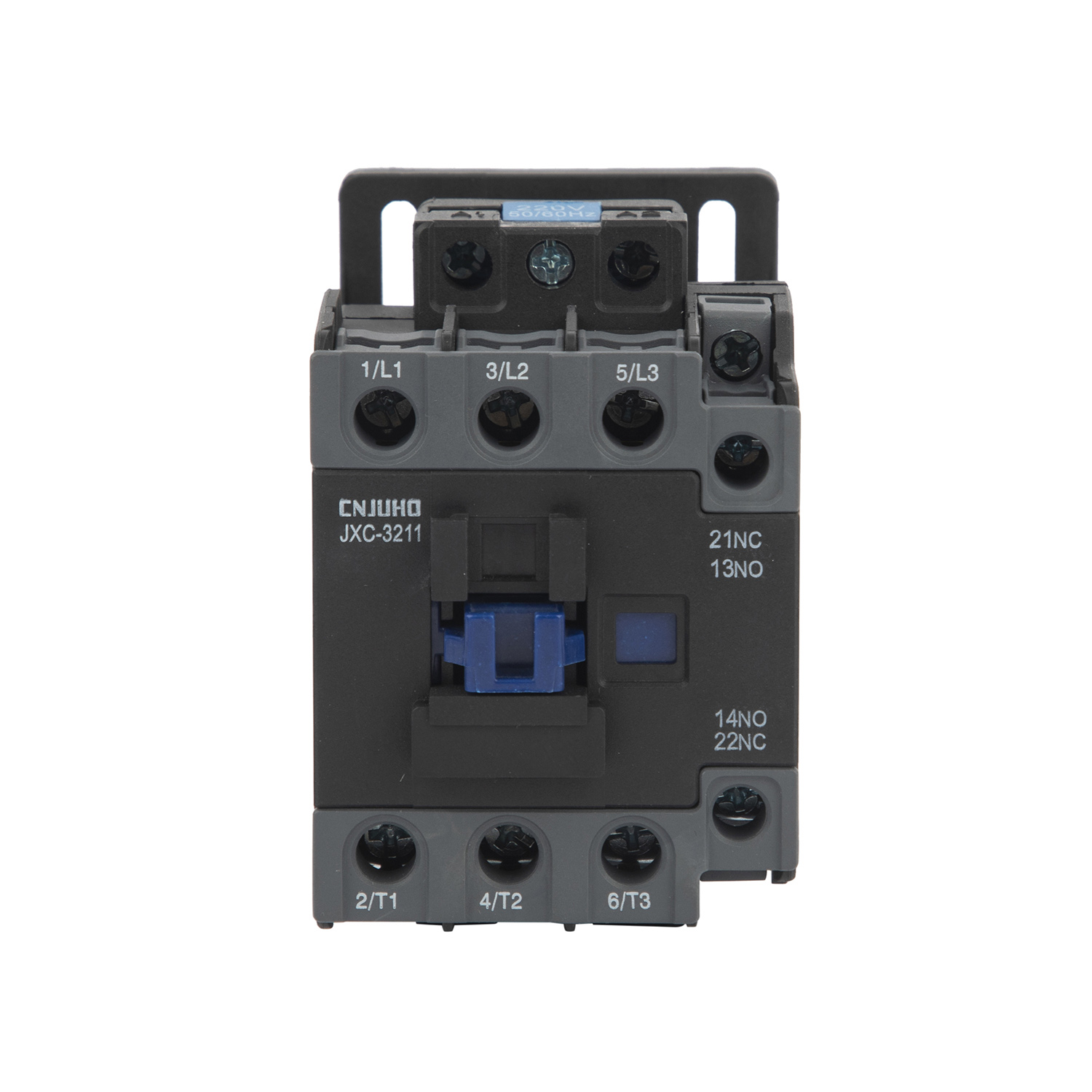

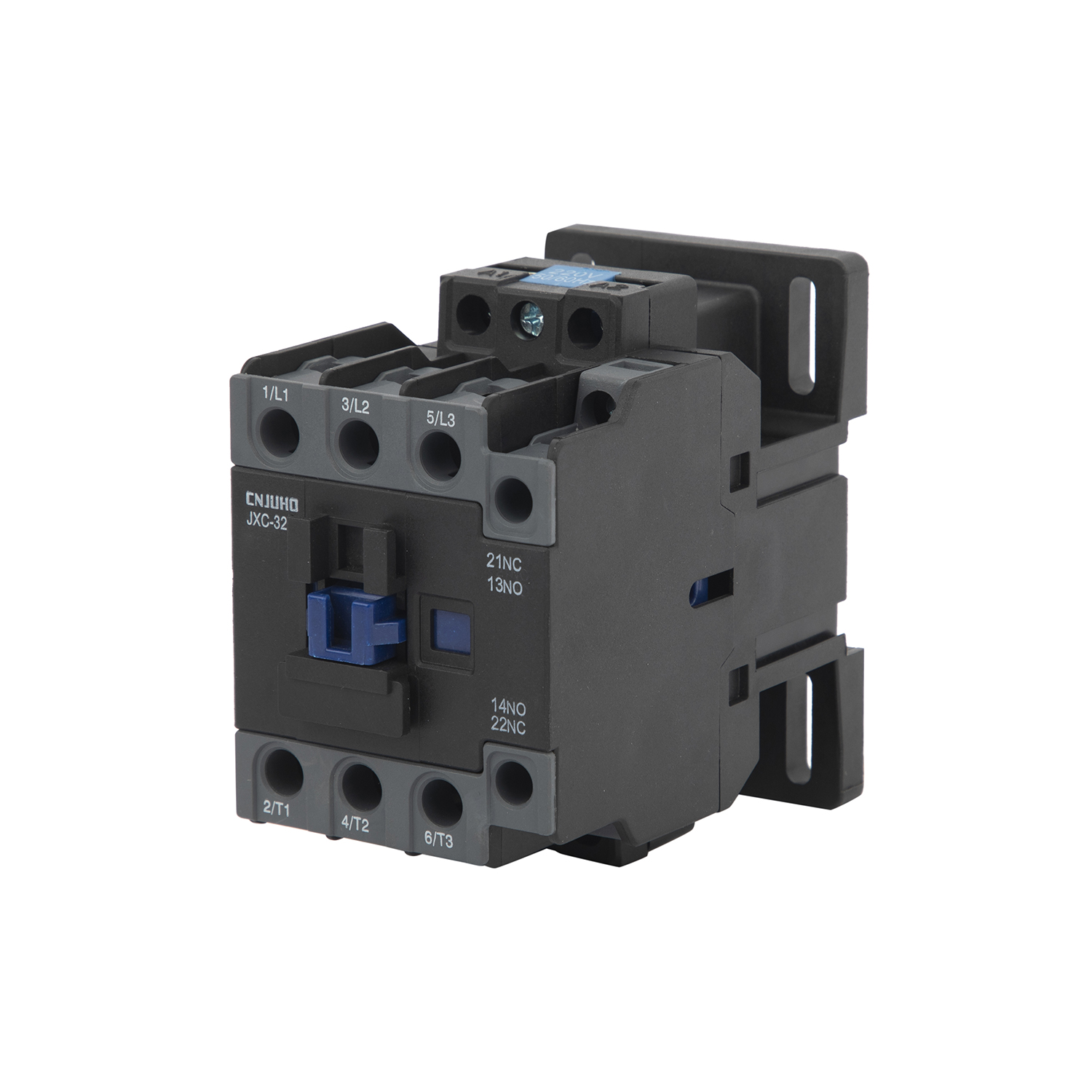

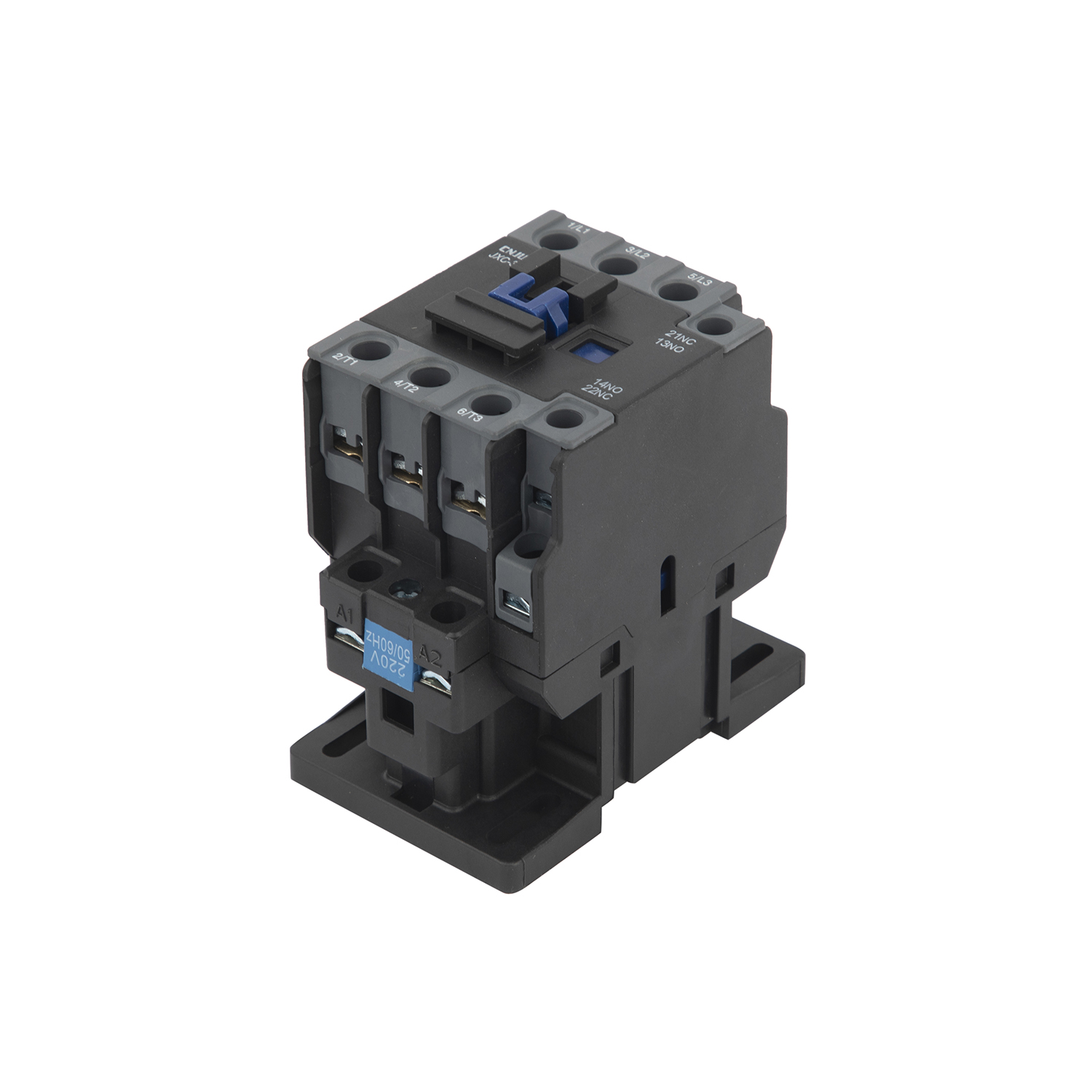

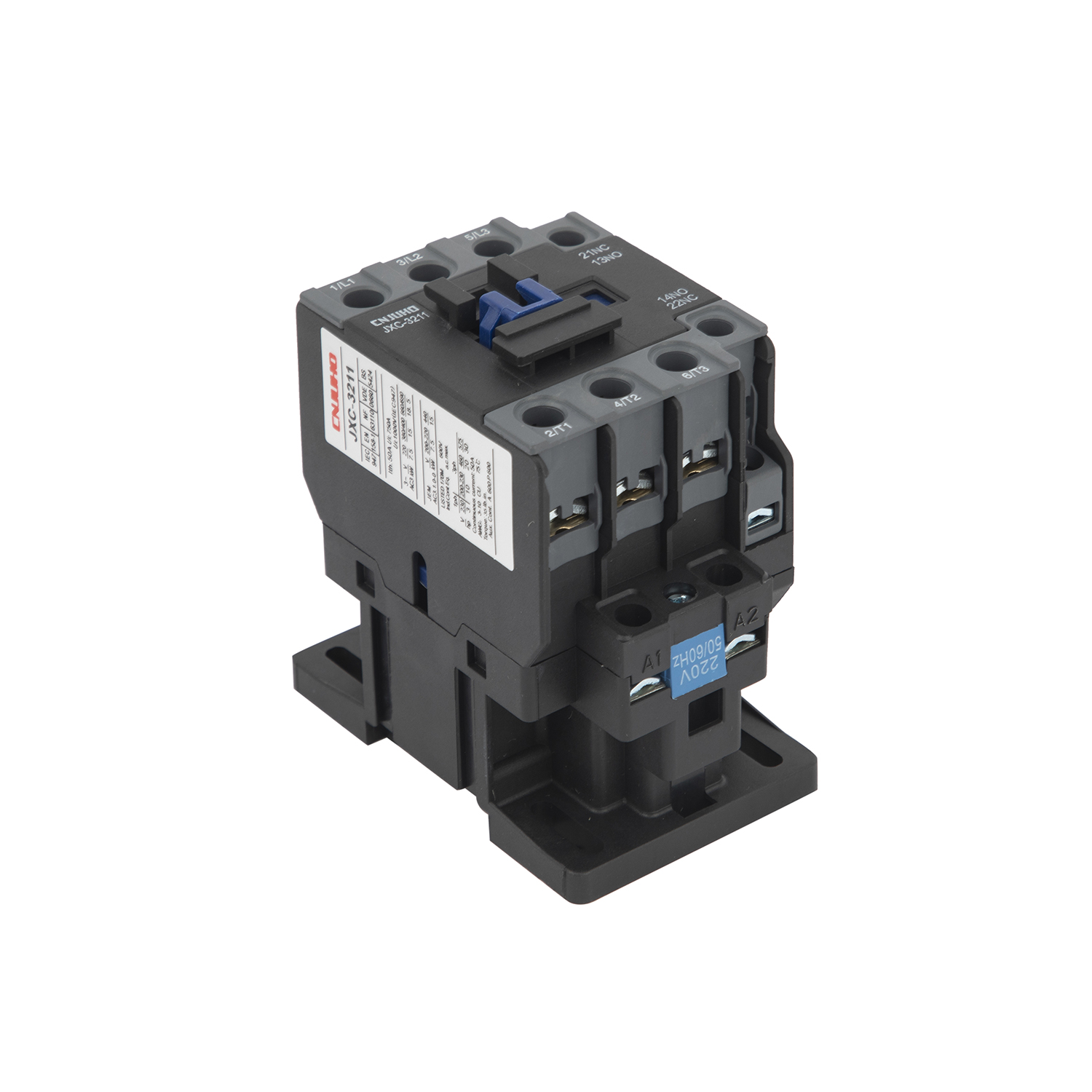

JXC3211 AC contactors 220V/380V

Short Description:

The new JXC AC contactors feature a novel appearance and a compact structure. They are
mainly used for frequent starts and control of AC motors as well as remote circuit making /
breaking.They can also be combined with appropriate thermal overload relays to form
electromagnetic starters.
Compliant standards: IEC/EN 60947-1, IEC/EN 60947-4-1, IEC/EN 60947-5-1.

Send email to us

Product Detail

Product Tags

Type	Rated insulation voltage(V)	Conventional thermal current(A)	Rated operation current(A)	Control power(kw)					No .of contacts
Type	Rated insulation voltage(V)	Conventional thermal current(A)	Rated operation current(A)	220V	380V	415V	440V	660V	No .of contacts
JXC-0911	660	20	9	2.2	4	4	4	5.5	3P+1N.O+1N.C
JXC-1211		20	12	3	5.5	5.5	5.5	7.5	3P+1N.O+1N.C
JXC-1811		32	18	4	7.5	9	9	9	3P+1N.O+1N.C
JXC-2511		40	25	5.5	11	11	11	15	3P+1N.O+1N.C
JXC-3211		50	32	7.5	15	15	15	18.5	3P+1N.O+1N.C
JXC-4011		60	40	11	18.5	22	22	30	3P+1N.O+1N.C
JXC-5011		80	50	15	22	25	30	33
JXC-6511		80	65	18.5	30	37	37	37
JXC-8011		125	80	22	37	45	45	45
JXC-9511		125	95	25	45	45	45	45
