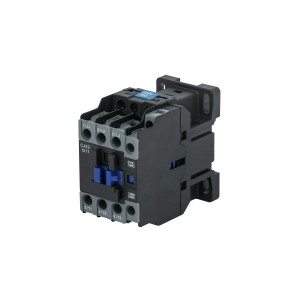

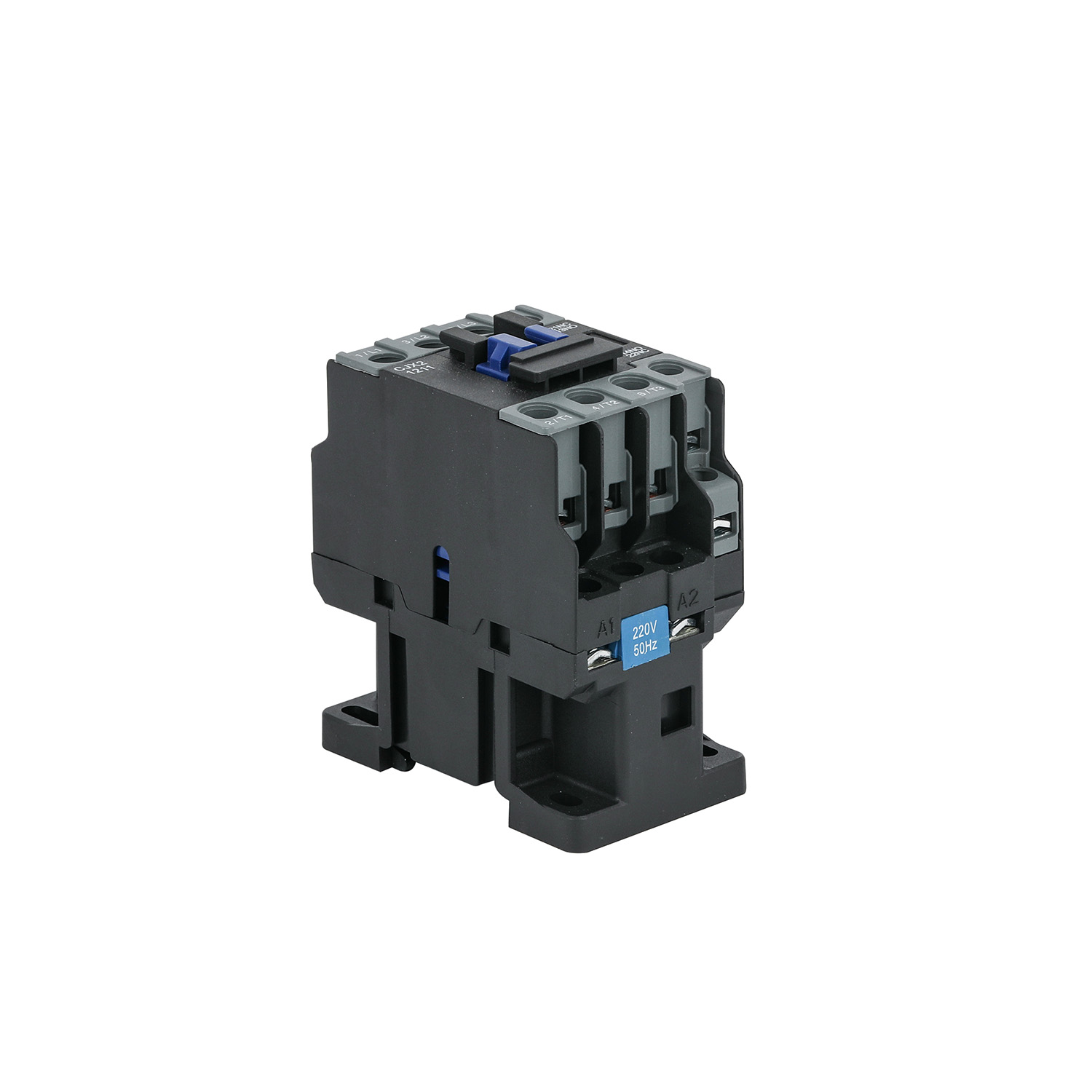

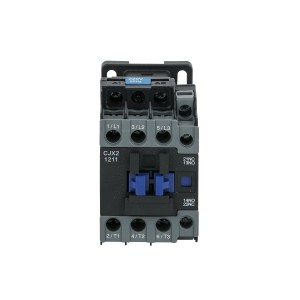

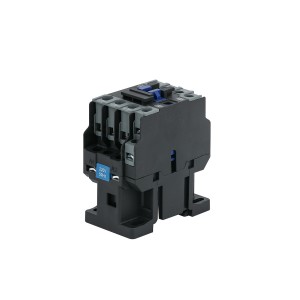

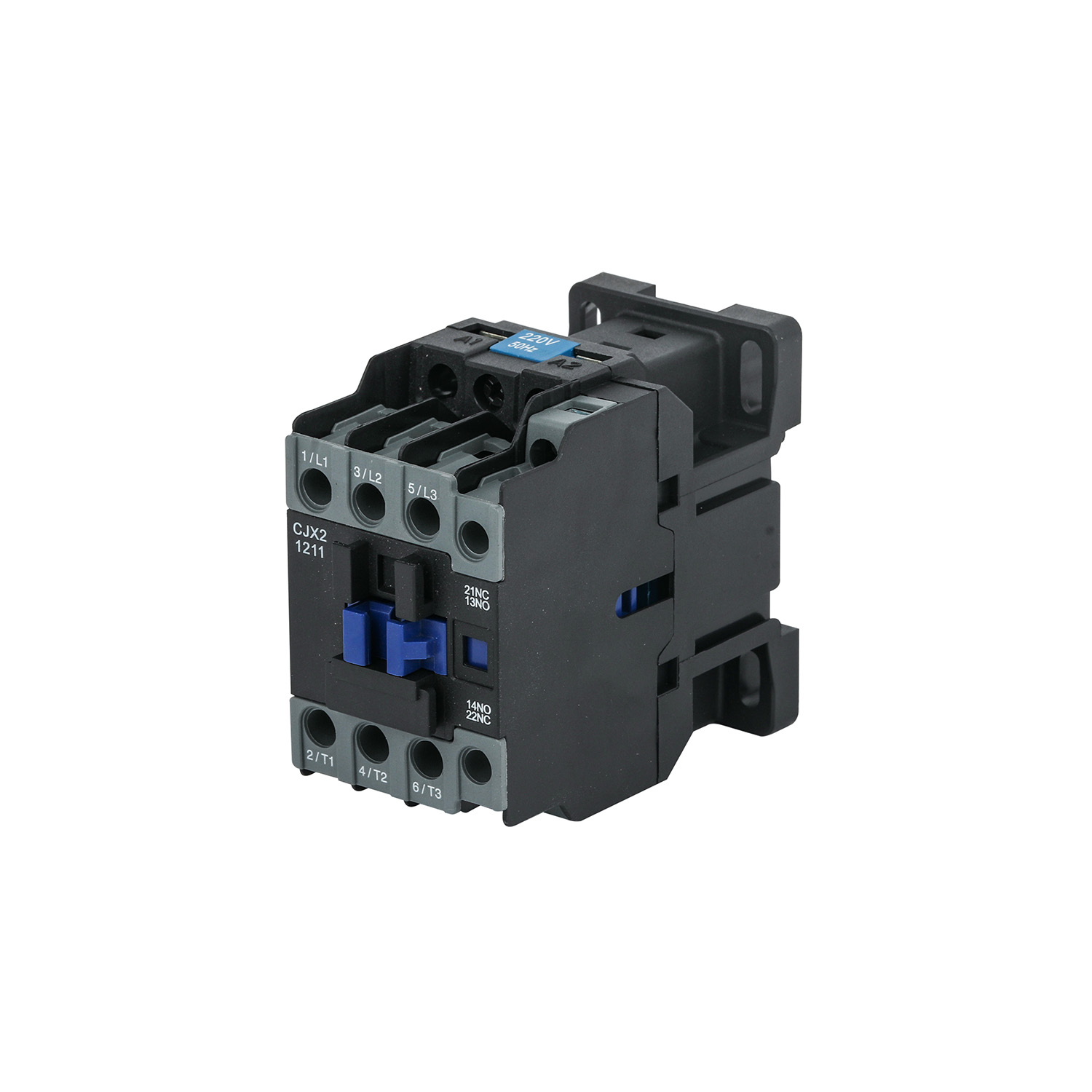

JXC1811 Magnetic ac contactors 380V/110V

Short Description:

The new JXC AC contactors feature a novel appearance and a compact structure. They are
mainly used for frequent starts and control of AC motors as well as remote circuit making breaking

● Rated operation current Ie: 6A~100A
● Rated operation voltage Ue: 220V~690V
● Rated insulation voltage: 690V (JXC-06M~100), 1000V (JXC-120~630)
● Number of poles: 3P and 4P (only for JXC-06M~12M)
● Coil control method: AC (JXC-06(M)~225), DC (JXC-06M~12M),AC/DC (JXC-265~630)
● Installation method: JXC-06M~100 rail and screw installation,JXC-120~630 screw installation

Send email to us

Product Detail

Product Tags

Type	Rated insulation voltage(V)	Conventional thermal current(A)	Rated operation current(A)	Control power(kw)					No .of contacts
Type	Rated insulation voltage(V)	Conventional thermal current(A)	Rated operation current(A)	220V	380V	415V	440V	660V	No .of contacts
JXC-0911	660	20	9	2.2	4	4	4	5.5	3P+1N.O+1N.C
JXC-1211		20	12	3	5.5	5.5	5.5	7.5	3P+1N.O+1N.C
JXC-1811		32	18	4	7.5	9	9	9	3P+1N.O+1N.C
JXC-2511		40	25	5.5	11	11	11	15	3P+1N.O+1N.C
JXC-3211		50	32	7.5	15	15	15	18.5	3P+1N.O+1N.C
JXC-4011		60	40	11	18.5	22	22	30	3P+1N.O+1N.C
JXC-5011		80	50	15	22	25	30	33
JXC-6511		80	65	18.5	30	37	37	37
JXC-8011		125	80	22	37	45	45	45
JXC-9511		125	95	25	45	45	45	45

Instructions for use of correction factors in high altitude areas
● IEC/EN 60947-4-1 standard defines the relation between alitude and impulse withstand voltage. An alitude of 2000 m above sea
level or lower hasno significant impact on product performance.
● At an altitude higher than 2000 m, air cooling efect and decease of rated impulse withstand voltage have to be considered.In ths
case, design anduse of products have to be negotiated by the manufacturer and the user.
● The correction factors for rated impulse withstand voltage and rated operation current for alitudes higher than 2000 m are given in
the followingtable.The rated operation voltage remains unchanged.
