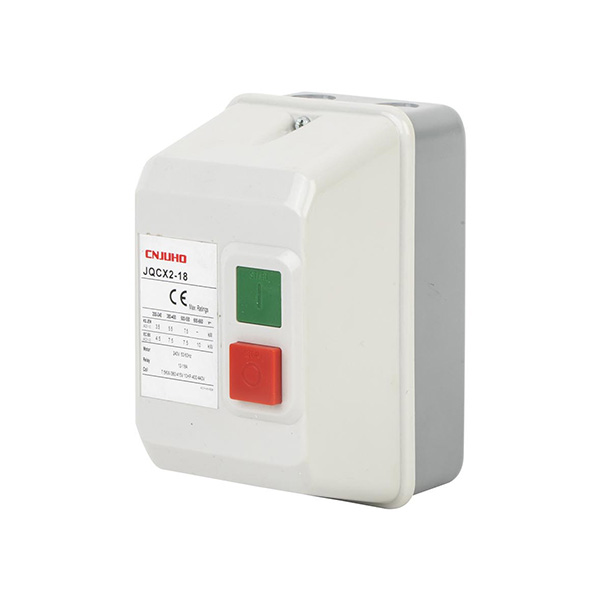

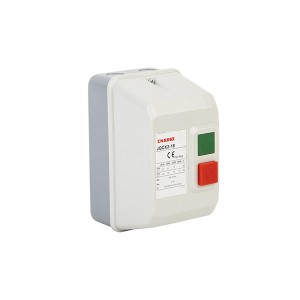

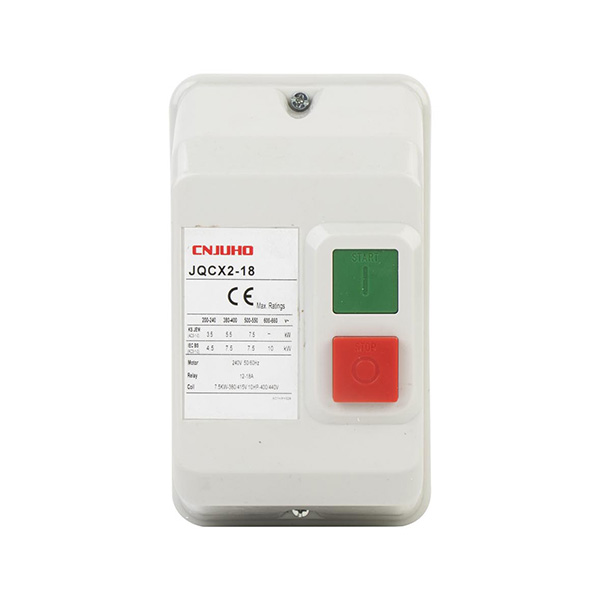

JQCX2-18 magnetic starter

Short Description:

Application:

JQCX2-18 series magnetic starter mainly be applicable to the AC circuits of 50Hz/60Hz under rated voltage up to 380V and rated current up to 95A. It is used for controlling the 3-phase squirrel-case type induction motor to operate starting, stop, forward or reverse. And it can protect the motor from overload and interruption.

Send email to us

Product Detail

Product Tags

Main specification:

Type	Rated Current(A)	Maximum Power AC3 duty (KW)						SuitableThermal Relay(A)
Type	Rated Current(A)	220V 230V	380V 400V	415V	440V	500V	660V 690V	SuitableThermal Relay(A)
QCX2-9	9	2.2	4	4	4	5.5	5.5	JR28 D1312 JR28 D1314
QCX2-12	12	3	5.5	5.5	5.5	7.5	7.5	JR28 D1316
QCX2-18	18	4	7.5	9	9	10	10	JR28 D1321
QCX2-25	25	5.5	11	11	11	15	15	JR28 D1322 JR28 D2353
QCX2-32	32	7.5	15	15	15	18.5	18.5	JR28 D2355
QCX2-40	40	11	18.5	22	22	22	30	JR28 D3353 JR28 D3355
QCX2-50	50	15	22	25	30	30	33	JR28 D3357 JR28 D3359
QCX2-65	65	18.5	30	37	37	37	37	JR28 D3361
QCX2-80	80	22	37	45	45	55	45	JR28 D3363 JR28 D3365
QCX2-95	95	25	45	45	45	55	45	JR28 D3365
