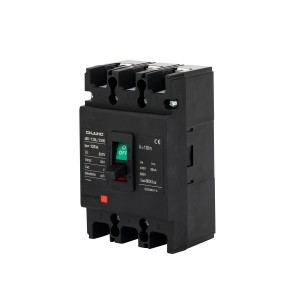

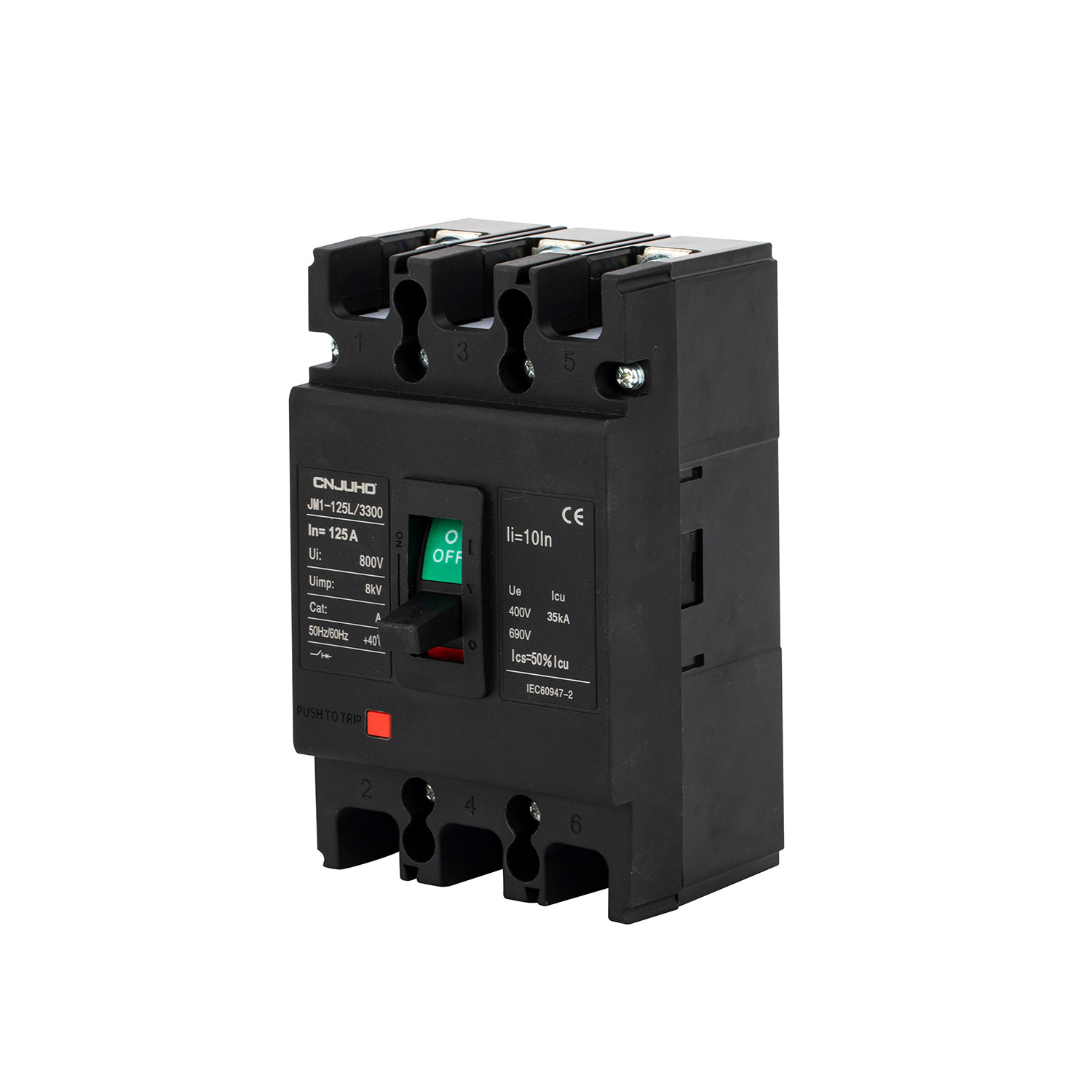

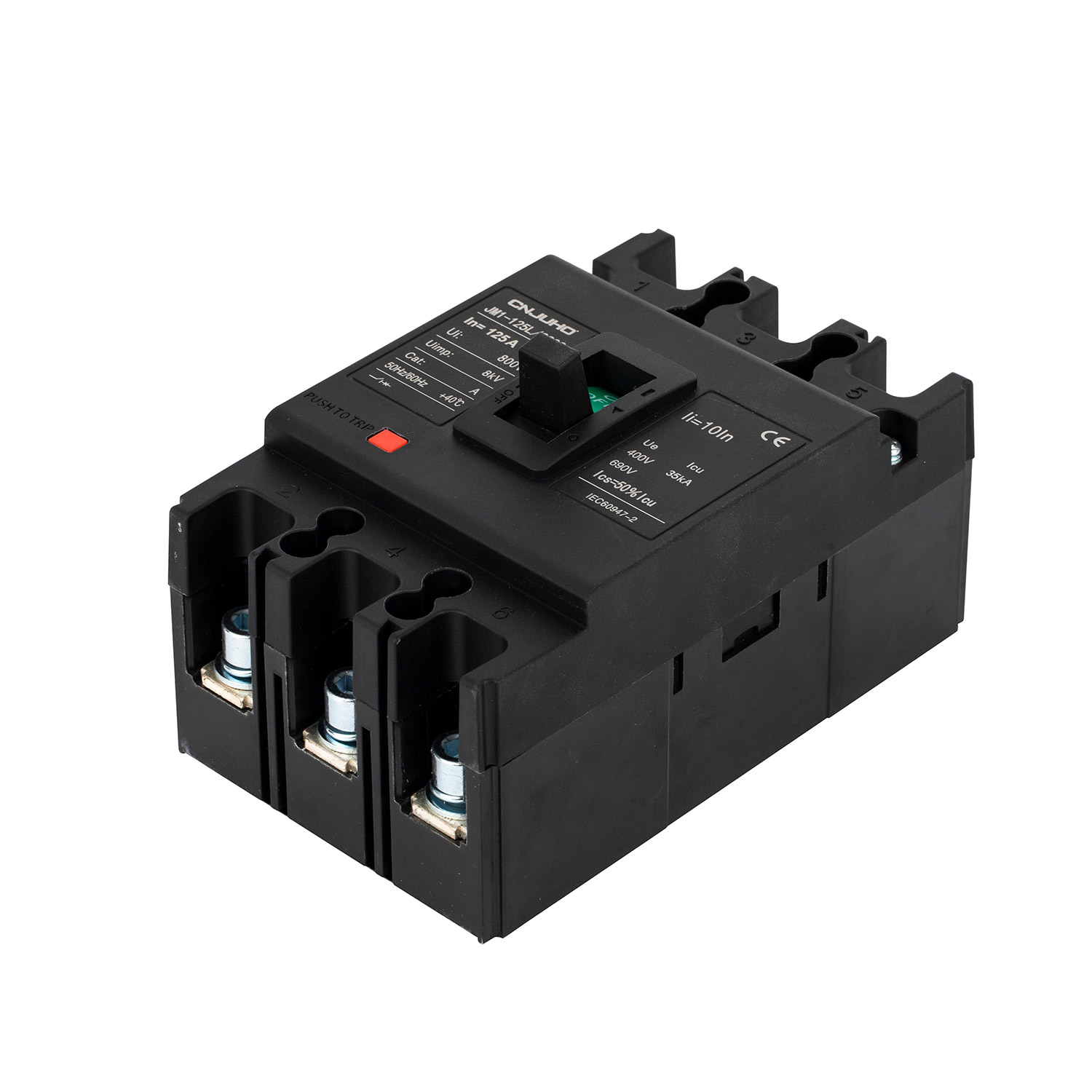

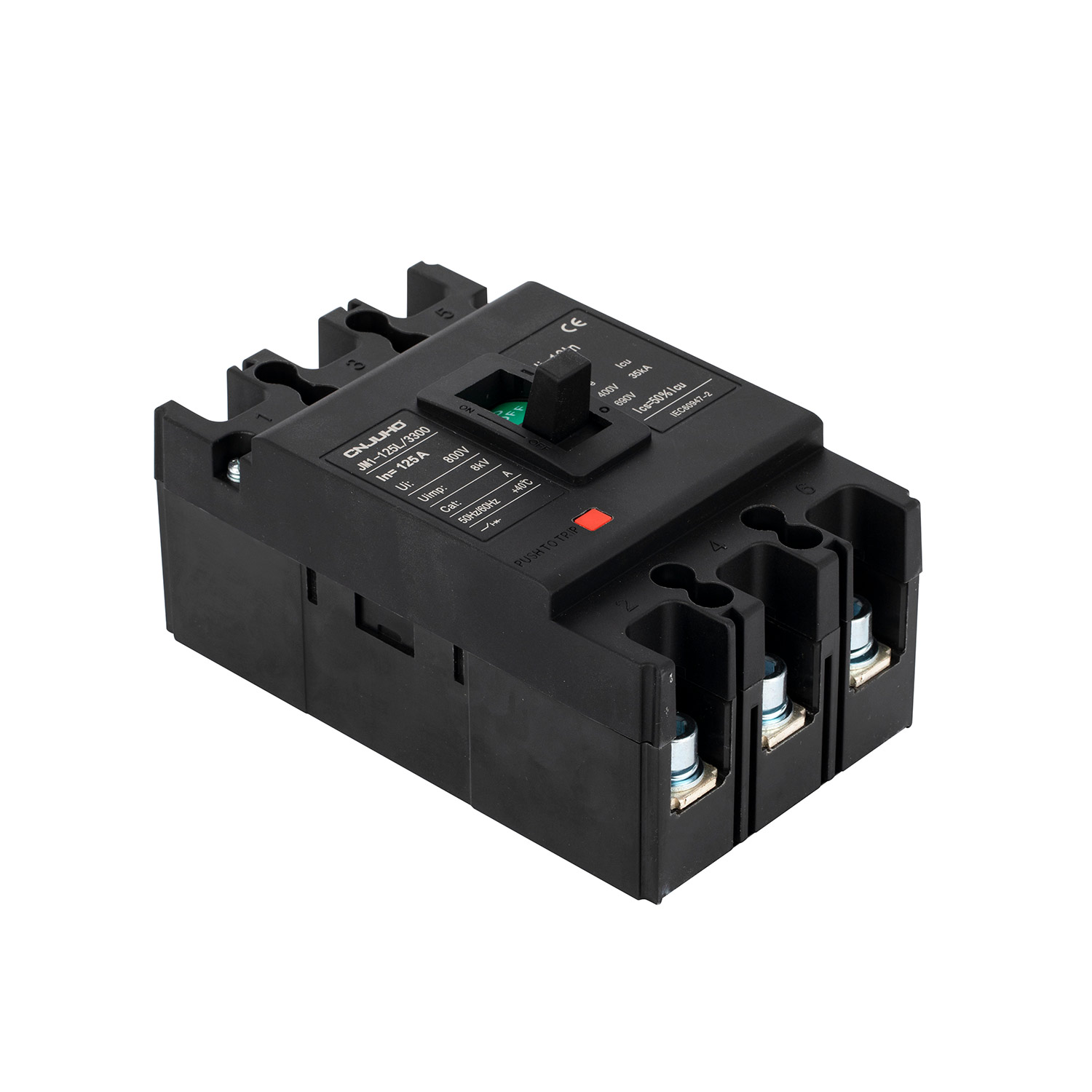

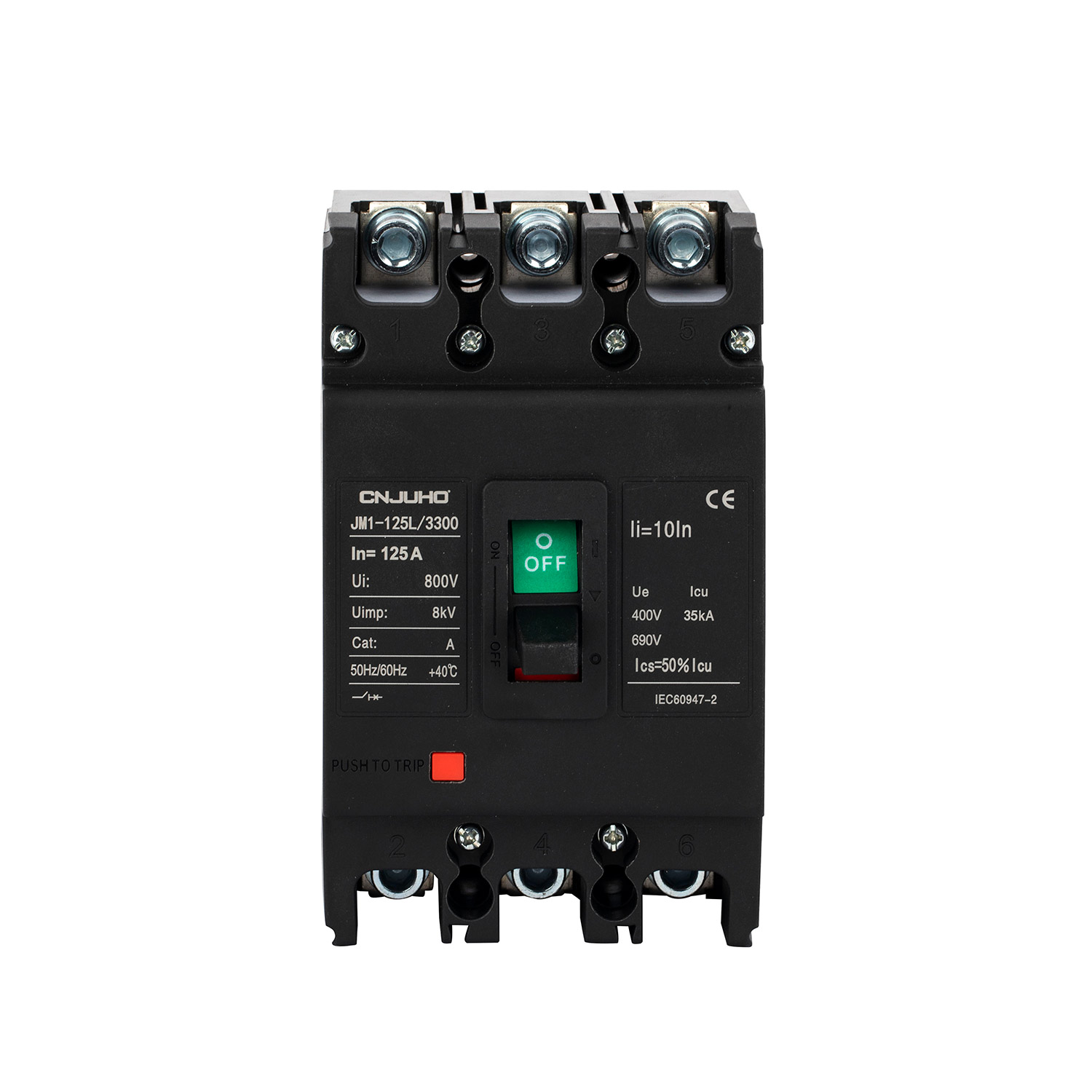

JM1-225L black material MCCB 100-630A

Short Description:

Application:
JM1 black 125-630A 3P/4P series mould case circuit breaker is new developed and manufactured by adopting international advanced technology.It is a supplied with rated insulation voltage 800V and used for circuit of AC 50HZ,rated operating voltage AC 400V or below rated operation current up to 800A for infrequent changing over and starting of the motors. Equipped with the protection devices for over-current,short circuit and under voltage,the products is capable of preventing damage of circuits and supplying units.The product confirms to IEC60947-2 standard.

Send email to us

Product Detail

Product Tags

Specification:

Type	Pole	Rated current (A)	Rated insulation voltage (V)	Rated operation voltage (V)	Arcing-over Distance (mm)	Ultimate short-circuit Breaking capacity (KA)	Service short-circuit Breaking capacity (KA)	Operation performance	Utilization category
JM1-63L	3P/4P	6,10,16,20,25 32,40,50,63	660	380	0	25	18	1500	8500
JM1-63M	3P/4P	6,10,16,20,25 32,40,50,63	660	380	0	50	35	1500	8500
JM1-100L	3P/4P	10,16,20,25,32,40,50,63,80,100	660	380	0	35	22	1500	8500
JM1-100M			660	380	≤50	50	35	1500	8500
JM1-100H			660	380	≤50	85	50	1000	7000
JM1-225L	3P/4P	100, 125, 160, 180, 200, 225	660	380	≤50	35	22	1000	7000
JM1-225M			660	380	≤50	50	35	1000	7000
JM1-225H			660	380	≤50	85	50	1000	7000
JM1-400L	3P/4P	225, 250, 315, 350, 400	660	380	≤50	50	35	1000	4000
JM1-400M			660	380	≤50	65	42	1000	4000
JM1-400H			660	380	≤50	65	42	1000	4000
JM1-630L	3P	400, 500, 630	660	380	≤100	50	35	1000	4000
JM1-630M			660	380	≤100	65	42	1000	4000
JM1-630H			660	380	≤100	65	65	1000	4000
JM1-800M	3P	630, 700, 800	660	380	≤100	75	50	1000	4000
JM1-800H	3P	630, 700, 800	660	380	≤100	100	65	1000	4000
JM1-1250M	3P	1000, 1250	660	380	≤100	100	65	1000	4000
JM1-1250H	3P	1000, 1250	660	380	≤100	125	75	1000	4000
JM1-1600M	3P	1600	660	380	≤100	150	80	1000	4000

Note:

1.The MCCB has L; M; H types according to their rated limit short-circuit breaking capacity.

2.The MCCB is advantageous for its compact body, high breaking capacity(some even on flying arc), short arc-casting.

3.The MCCB has function of insulation wit its mark

4.The product complies with IEC60947-2, GB14048.2. Type code & signification
5.N-P type from 4-P has 3 types: A type: N-P without current tripper(normally open);
6.B type: N-P without current tripper working together with other 3P;
7.C type: N-P without current tripper working together with other 3P;

8.No code for distribution type breakers, 2 for motor-protection type;

9.No-code for distribution type breakers, 2 for motor-protection type;

It can be divided into L (common) type, M (standard) type and H (high) type. L type with connecting current equal to relevant frame level and M type with breaking capacity equaling to their frame level according to their rated limited short short-circuit breaking capacity (l c u).
