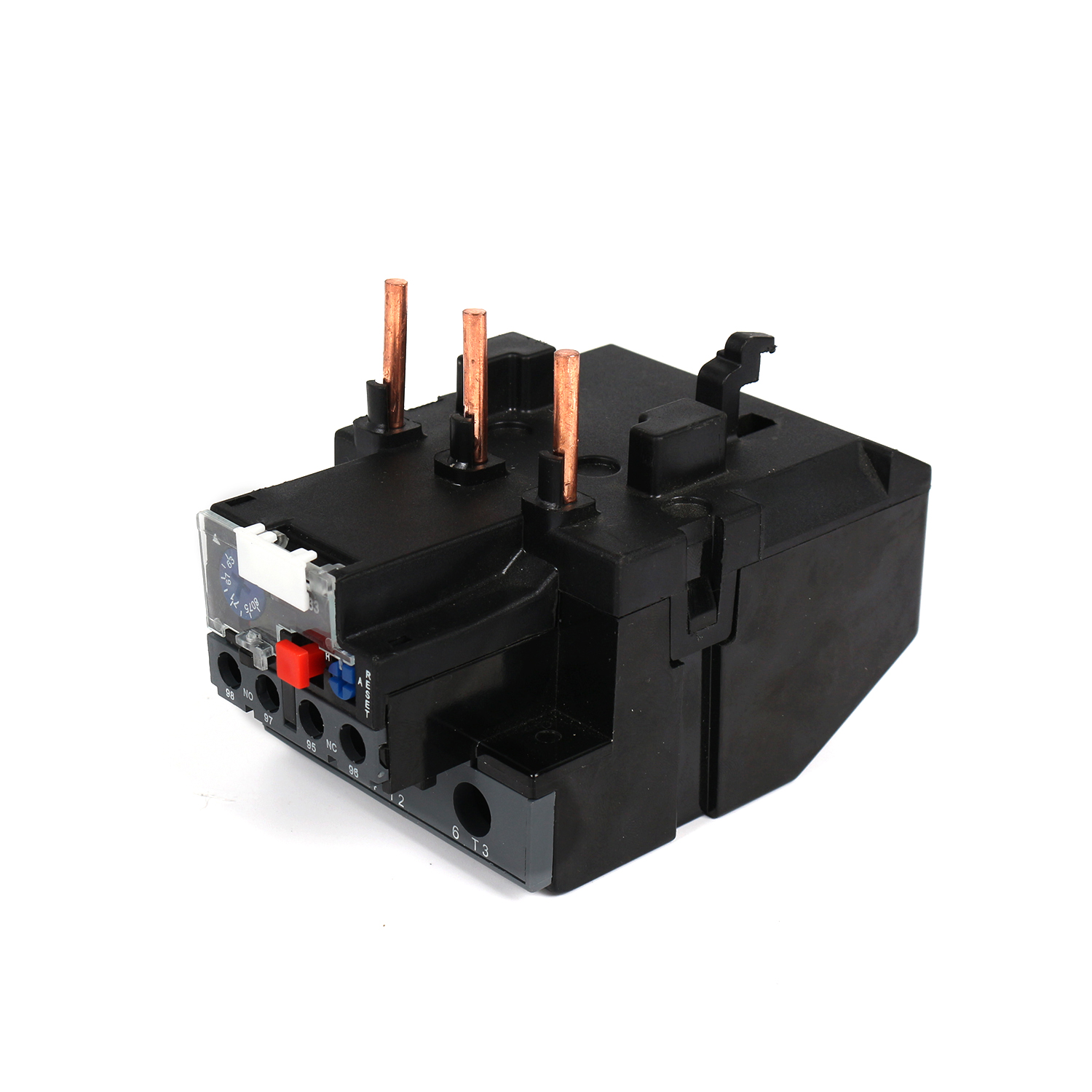

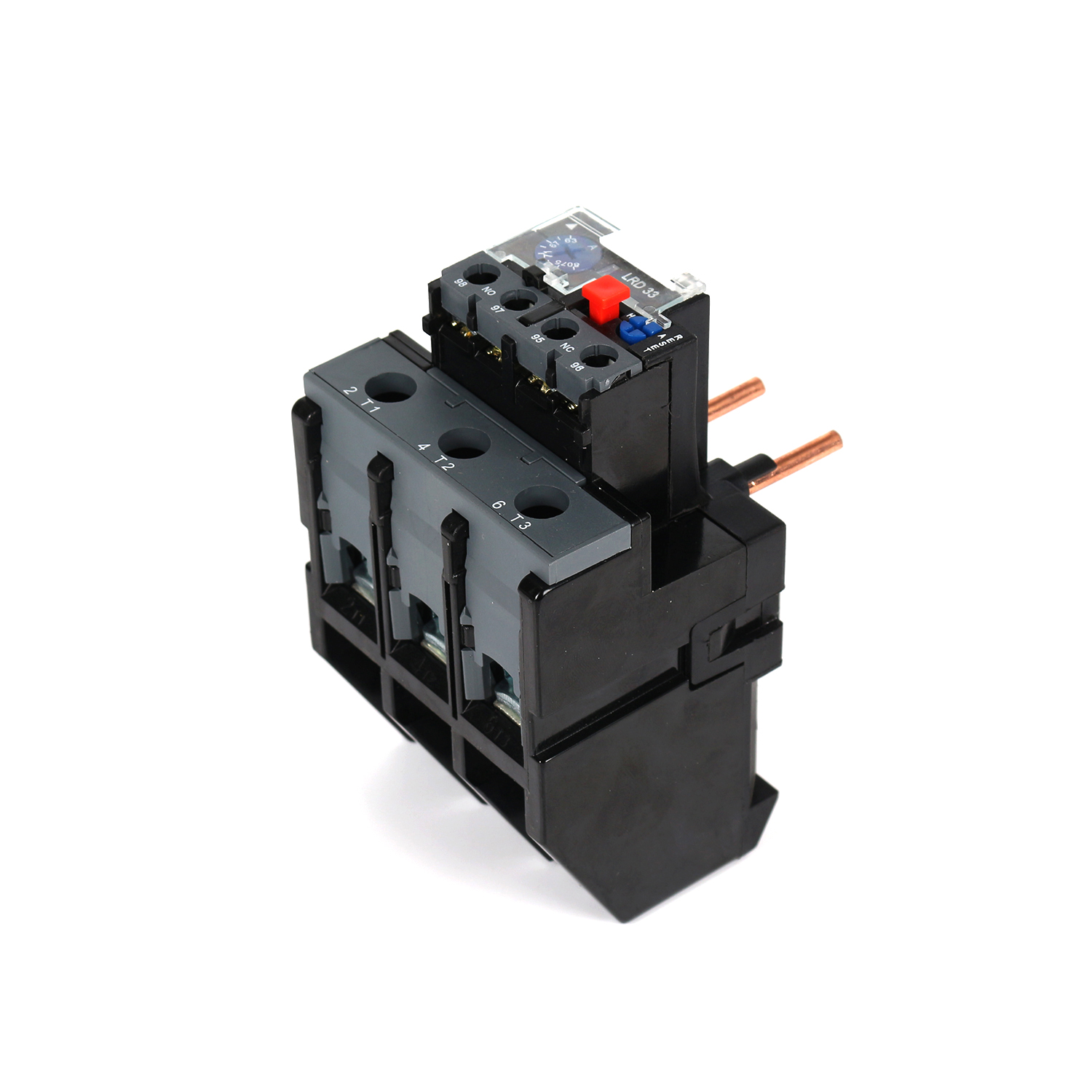

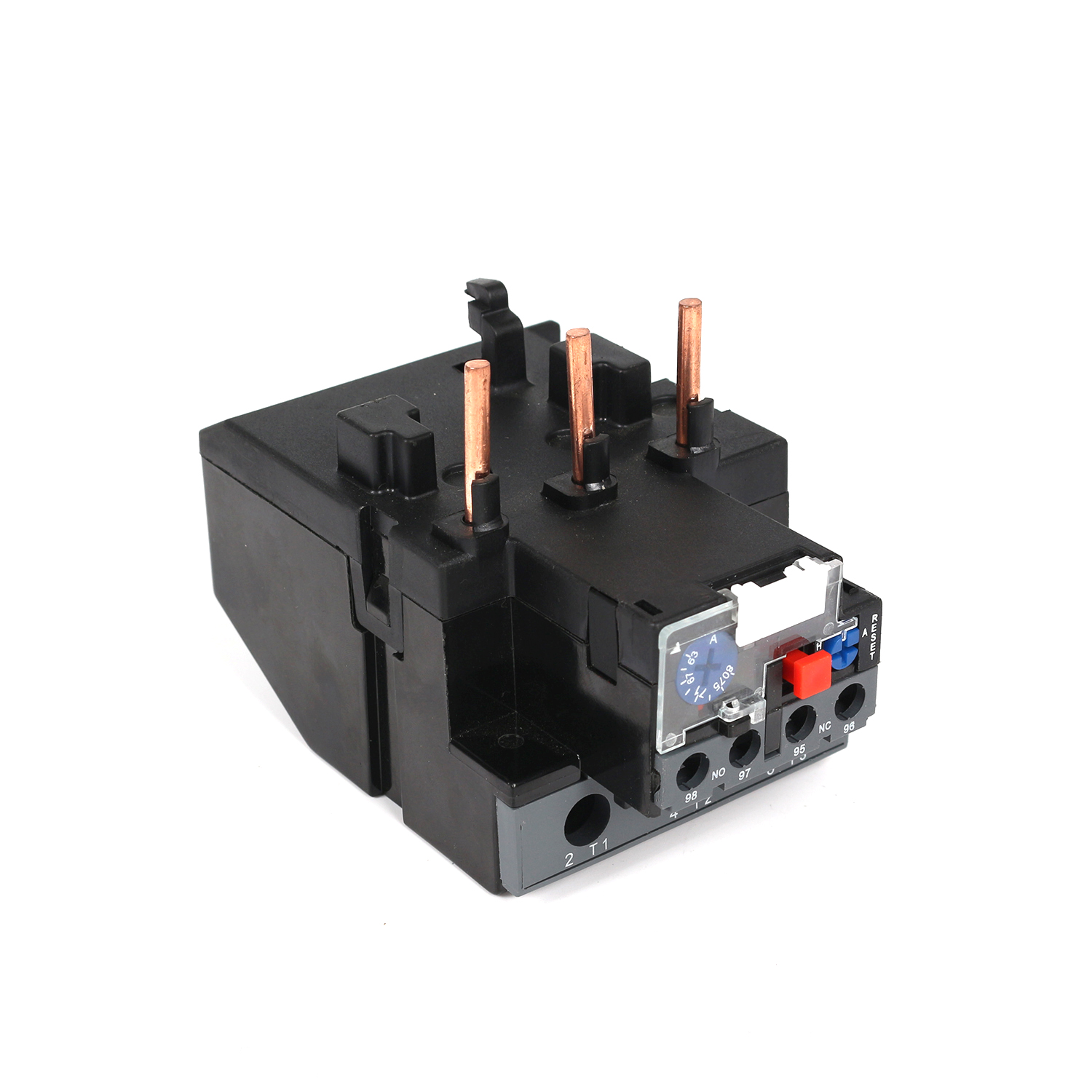

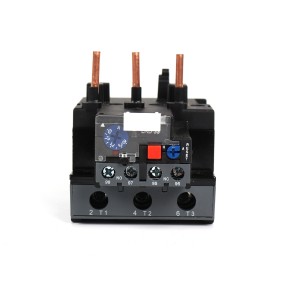

JLRD33 thermal overload relay

Short Description:

JLRD33 series thermal relay is suitable for using in the circuit rated voltage up to 660V, rated current 93A AC 50/ 60Hz, for over-current protection of AC motor. The relay has the differential mechanism and temperature compensation and can plug in JLC1 series AC contactor. The product conforms to IEC60947-4-1 stardand.

Send email to us

Product Detail

Product Tags

Phase-Losing Motion Characteristic

No	Times of the setting current(A)		Motion time	Start condition	Ambient temperature
	Any two phases	Another phase
1	1.0	0.9	>2h	Cold state	20±5°C
2	1.15	0	<2h	Heat state (Following the No.l test)

JLRD33	3322	17~25	JLC1-09~32
	3353	23~32	JLC1-09~32
	3355	30~40	JLC1-09~32
	3357	37~50	JLC1-09~32
	3359	48~65	JLC1-09~32
	3361	55~70	JLC1-09~32
	3363	63~80	JLC1-09~32
	3365	80~93	JLC1-95
