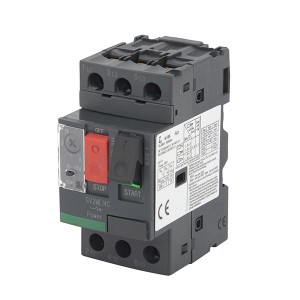

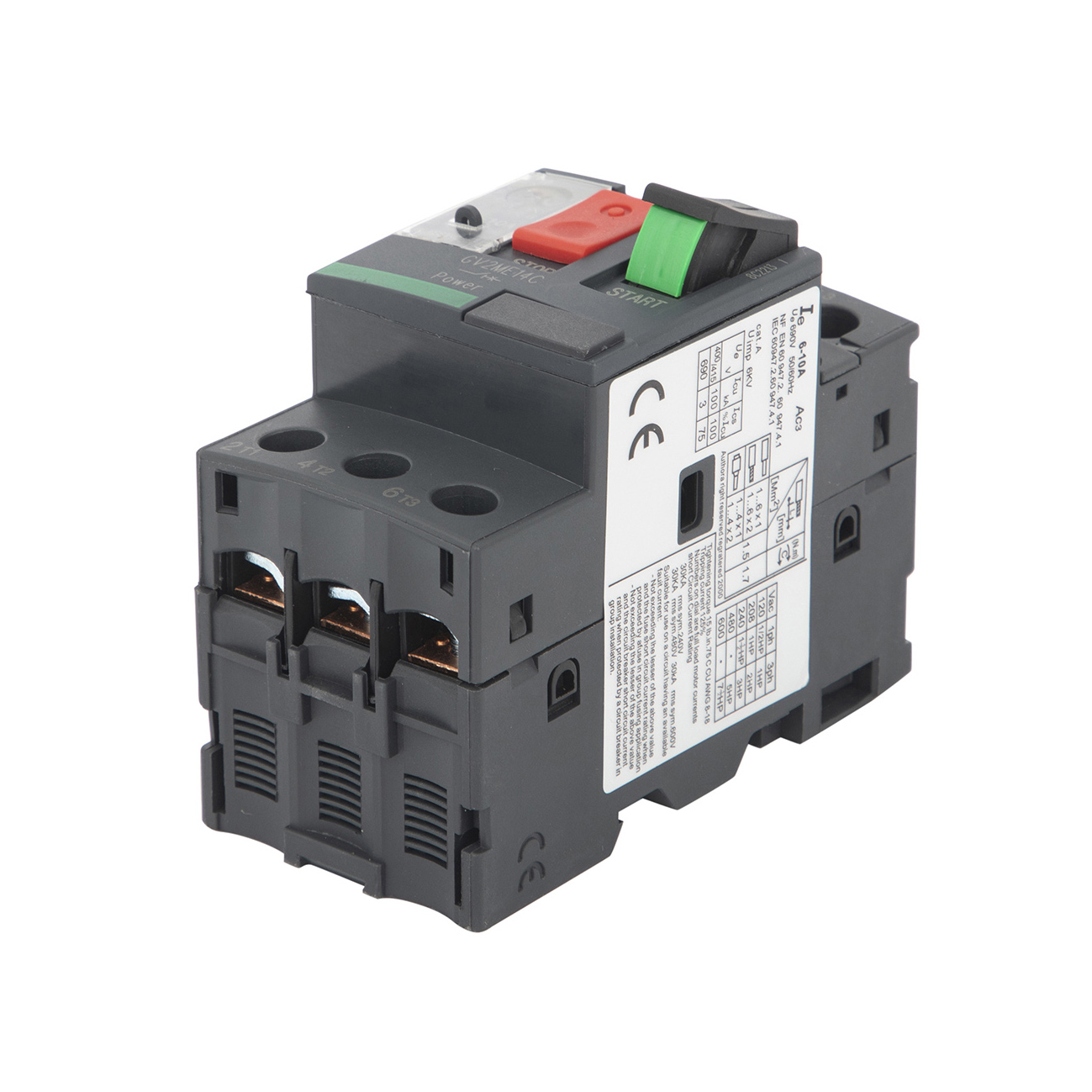

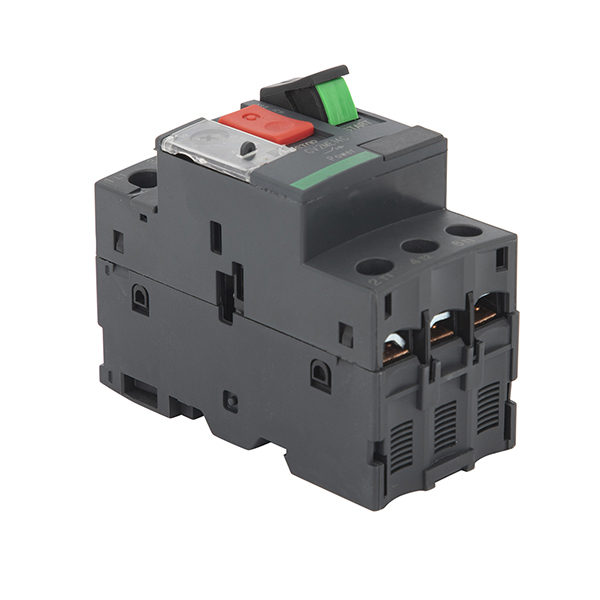

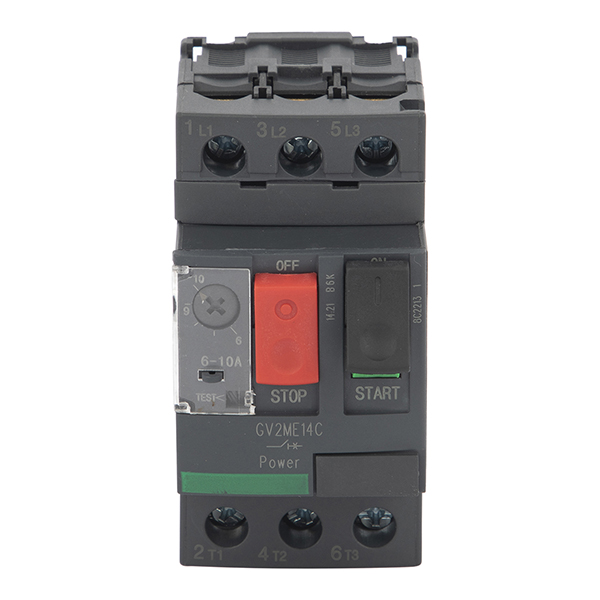

JGV2ME motor protection circuit breaker

Short Description:

Application:

GV2ME TeSys Deca Manual Starter and Protector, thermal magnetic circuit protector, screw clamp,this type motor protection circuit breaker is modular design, deautiful appearance, phase failure protection,built-in thermal relay, strong function and good versatility.It is confirmed to IEC60947-2

Send email to us

Product Detail

Product Tags

Parameter data sheet

Range	TeSys Deca 0.1-32A MPCB
Product name	GV2ME
Product or Component Type	GVMEM01 0.1-0.16A GV2ME02 0.16-0.25A GV2ME03 0.25-0.4A GV2ME04 0.4-0.63A GV2ME05 0.63-1A GV2ME06 1-1.6A GV2ME07 1.6-2.5A GV2ME08 2.5-4A GV2ME10 4-6.3A GV2ME14 6-10A GV2ME16 9-14A GV2ME20 13-18A GV2ME21 17-23A GV2ME32 24-32A
Device short name	AC-4;AC-1;AC-3;AC-3e
Device Application	Motor protection
Trip unit technology	Thermal-magnetic
Poles description	3P
Network type	AC
Utilisation category	Category A IEC 60947-2 AC-3 IEC 60947-4-1 AC-3e IEC 60947-4-1
Motor power kW	3 kW 400/415 V AC 50/60 Hz 5 kW 500 V AC 50/60 Hz 5.5 kW 690 V AC 50/60 Hz
Breaking capacity	100 kA Icu 230/240 V AC 50/60 Hz IEC 60947-2 100 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2 100 kA Icu 440 V AC 50/60 Hz IEC 60947-2 50 kA Icu 500 V AC 50/60 Hz IEC 60947-2 6 kA Icu 690 V AC 50/60 Hz IEC 60947-2
[Ics] rated service short-circuit breaking capacity	100 % 230/240 V AC 50/60 Hz IEC 60947-2 100 % 400/415 V AC 50/60 Hz IEC 60947-2 100 % 440 V AC 50/60 Hz IEC 60947-2 100 % 500 V AC 50/60 Hz IEC 60947-2 100 % 690 V AC 50/60 Hz IEC 60947-2
Control Type	Rotary handle
Line Rated Current	10 A
Thermal protection adjustment range	6…10 A IEC 60947-4-1
Magnetic tripping current	149A
[Ith] conventional free air thermal current	10 A IEC 60947-4-1
[Ue] rated operational voltage	690 V AC 50/60 Hz IEC 60947-2
[Ui] rated insulation voltage	690 V AC 50/60 Hz IEC 60947-2
[Uimp] rated impulse withstand voltage	6 kV IEC 60947-2
Power dissipation per pole	2.5 W
Mechanical durability	100000 cycles
Electrical durability	100000 cycles AC-3 415 V In 100000 cycles AC-3e 415 V In
Rated duty	Continuous IEC 60947-4-1
Tightening torque	15.05 lbf.in (1.7 N.m) screw clamp terminal
Fixing mode	35 mm symmetrical DIN rail clipped Panel screwed with 2 x M4 screws)
Mounting position	Horizontal /Vertical
IK degree of protection	IK04
IP degree of protection	IP20 IEC 60529
Climatic withstand	IACS E10
Ambient Air Temperature for Storage	-40…176 °F (-40…80 °C)
Fire resistance	1760 °F (960 °C) IEC 60695-2-11
Ambient air temperature for operation	-4…140 °F (-20…60 °C)
Mechanical robustness	Shocks 30 Gn for 11 ms Vibrations 5 Gn, 5…150 Hz
Operating altitude	6561.68 ft (2000 m)
Product dimension	1.8 in (45 mm)x3.5 in (89 mm)x3.8 in (97 mm)
