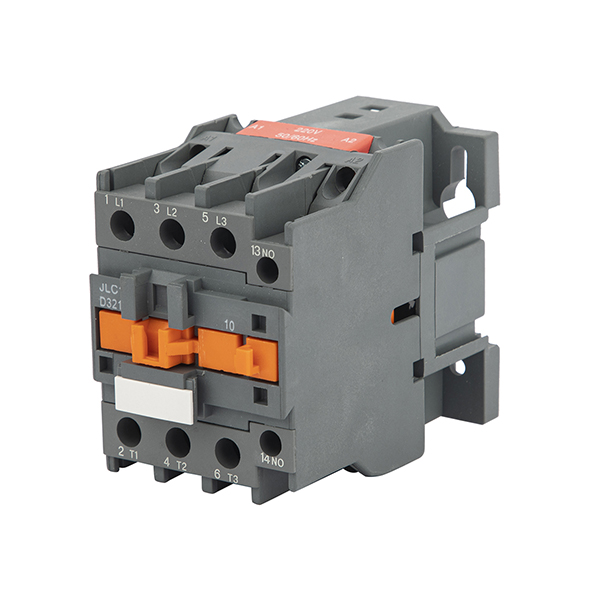

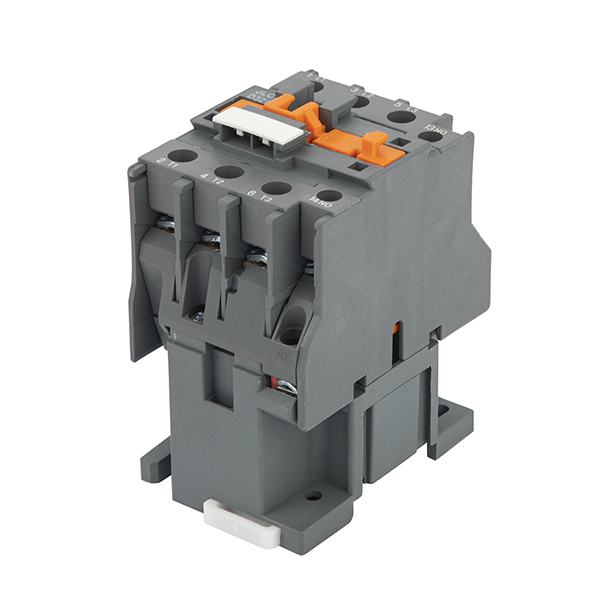

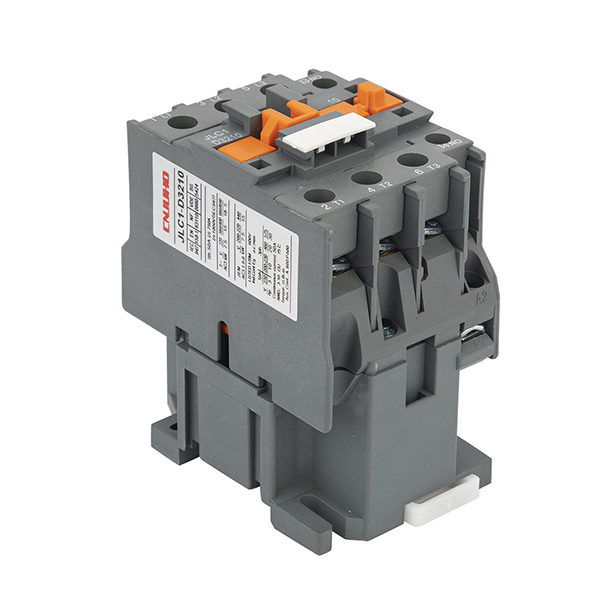

CJX2 new design magnetic ac contactors

Short Description:

CJX2 series 660V 9-95A AC Contactor is applicable at the line of AC 50/60 Hz, rated voltage up to 660V and rated current up to 95A for remote switch, breaking and frequent starting, controlling the AC motor. Moreover, the contactor can act as the time-delay contactor, reve-rsible contactor, star-delta starter by the accessories addition such as addition of modular auxiliary contact set. Air timedelay head, mechanical interlock mechanism, etc. Moreover, it could act as the electromagnetic starter by the direct plug of the thermal relay.
This product conforms to the requirement of IEC60947-4-1& GB14048.4 standards.

Send email to us

Product Detail

Product Tags

Type	Rated insulation voltage(V)	Conventional thermal current(A)	Rated operation current(A)	Control power(kw)					No .of contacts
Type	Rated insulation voltage(V)	Conventional thermal current(A)	Rated operation current(A)	220V	380V	415V	440V	660V	No .of contacts
CJX2-0910	660	20	9	2.2	4	4	4	5.5	3P+NO 3P+NC
CJX2-1210		20	12	3	5.5	5.5	5.5	7.5	3P+NO 3P+NC
CJX2-1810		32	18	4	7.5	9	9	9	3P+NO 3P+NC
CJX2-2510		40	25	5.5	11	11	11	15	3P+NO 3P+NC
CJX2-3210		50	32	7.5	15	15	15	18.5	3P+NO 3P+NC
CJX2-4011		60	40	11	18.5	22	22	30	3P+NO+NC
CJX2-5011		80	50	15	22	25	30	33
CJX2-6511		80	65	18.5	30	37	37	37
CJX2-8011		125	80	22	37	45	45	45
CJX2-9511		125	95	25	45	45	45	45
