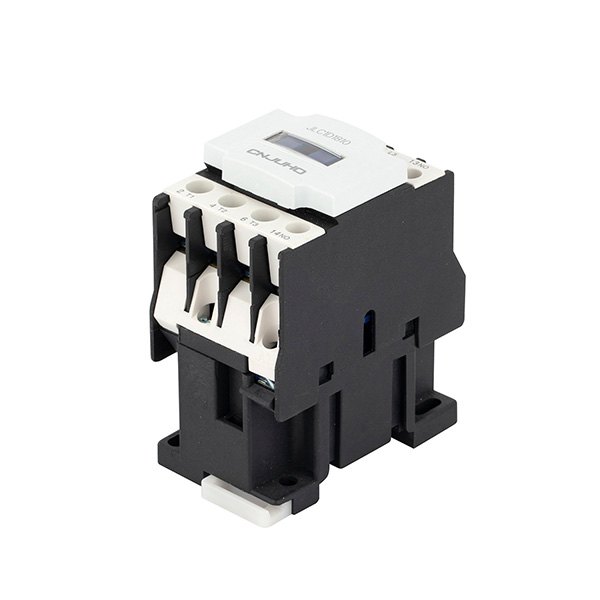

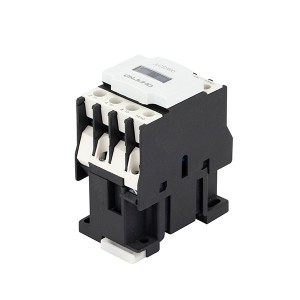

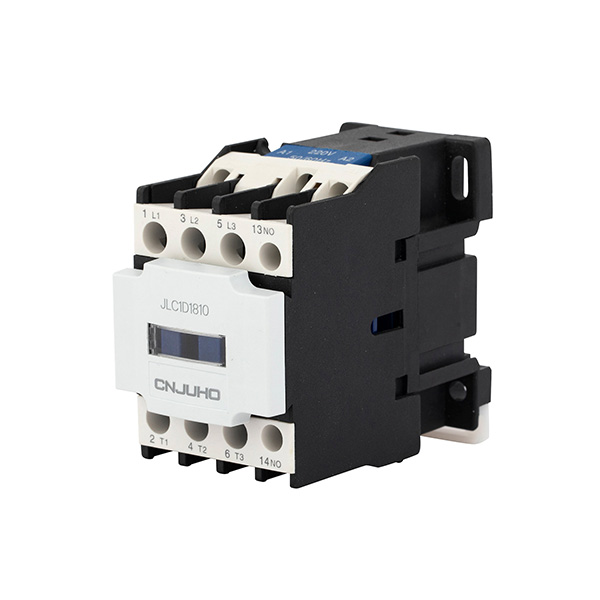

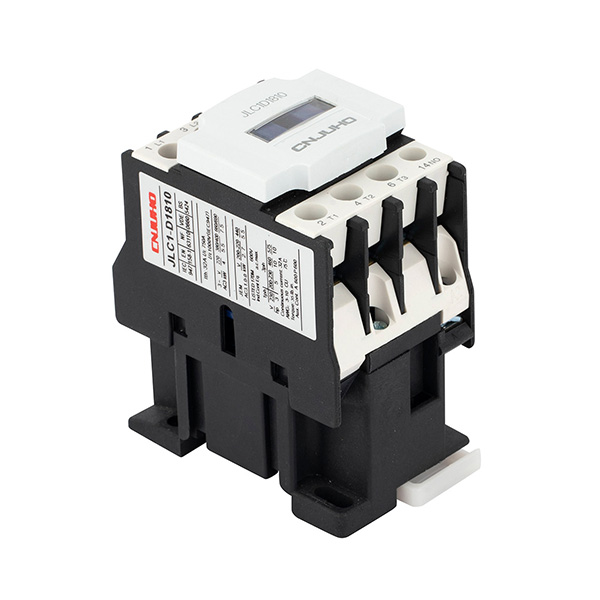

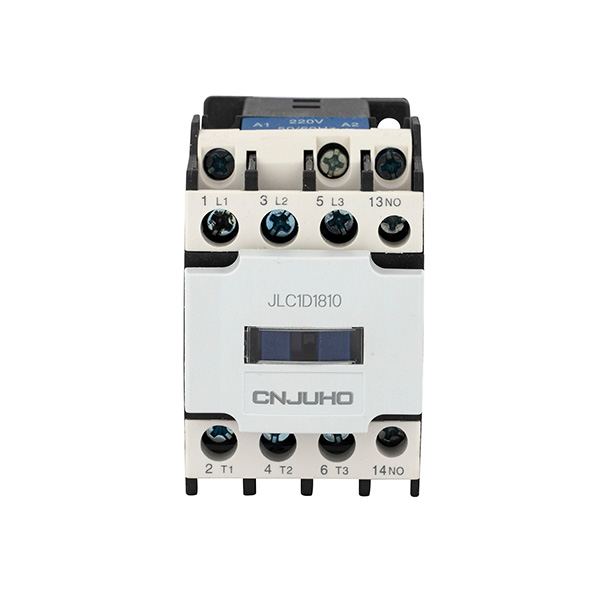

CJX2 AC contactor with duct protection cover

Short Description:

Contactor CJX2 Telemecanique series AC contactors are suitable for frequency 50/60Hz, rated insulation voltage up to 1000V, rated operation current 9~330A under AC-3 duty. It is mainly used for making/ breaking electric circuits at a long distance & for frequent starting/ stopping & controlling AC motors. It is used in combination with thermal relay to compose a magnetic motor starter. The products according with the standards such as IEC60947-4-1 & GB14048.4

Send email to us

Product Detail

Product Tags

Type	Rated insulation voltage(V)	Conventional thermal current(A)	Rated operation current(A)	Control power(kw)					No .of contacts
Type	Rated insulation voltage(V)	Conventional thermal current(A)	Rated operation current(A)	220V	380V	415V	440V	660V	No .of contacts
CJX2-0910	660	20	9	2.2	4	4	4	5.5	3P+NO 3P+NC
CJX2-1210		20	12	3	5.5	5.5	5.5	7.5	3P+NO 3P+NC
CJX2-1810		32	18	4	7.5	9	9	9	3P+NO 3P+NC
CJX2-2510		40	25	5.5	11	11	11	15	3P+NO 3P+NC
CJX2-3210		50	32	7.5	15	15	15	18.5	3P+NO 3P+NC
CJX2-4011		60	40	11	18.5	22	22	30	3P+NO+NC
CJX2-5011		80	50	15	22	25	30	33
CJX2-6511		80	65	18.5	30	37	37	37
CJX2-8011		125	80	22	37	45	45	45
CJX2-9511		125	95	25	45	45	45	45
