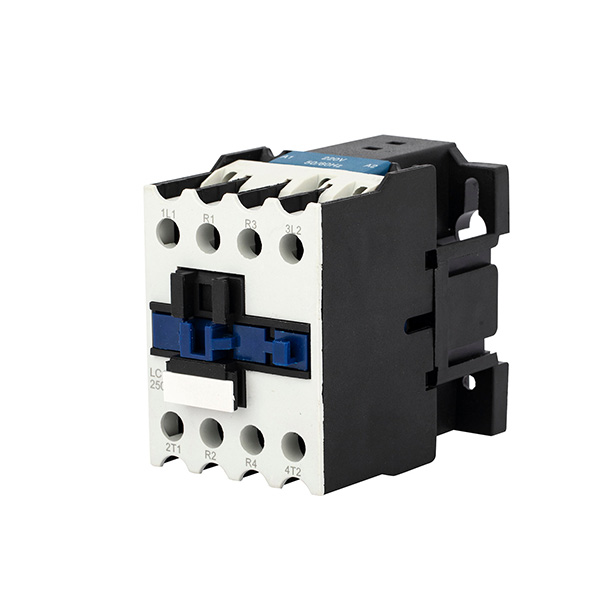

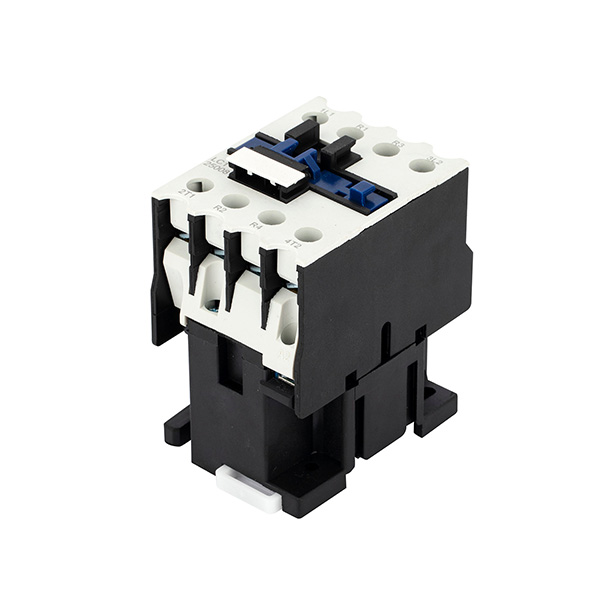

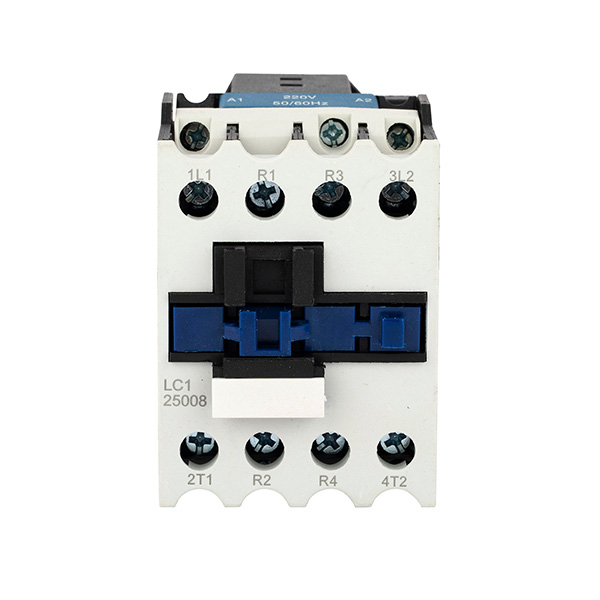

CJX2-25008 2N.O+2N.C magnetic ac contactors

Short Description:

CJX2-25008 series 4N.O AC Contactor is suitable for using in the circuits up to the rated voltage 660VAC 50Hz or 60Hz, rated current up to 25A, for making, breaking, frequently starting & controlling the AC motor. Combined with the auxiliary contact block, timer delay & machine-interlocking device etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter.With the thermal relay, it is combined into the electromagnetic starter. The product conforms to IEC60947-4-1 standard.

Send email to us

Product Detail

Product Tags

Type	LC1 4P AC CONTACTORS
Type		D09008/ D09004	D12008 D12004	D18008 D18004	D25008 D25004	D32008 D32004
Rated working current (A)	AC3	9	12	18	25	32
Rated working current (A)	AC4	3.5	5	7.7	8.5	12
Standard power ratings of 3-phase motors 50/60Hz in category AC-3	220/230V	2.2	3	4	5.5	7.5
	380/400V	4	5.5	7.5	11	15
	415V	4	5.5	9	11	15
	500V	5.5	7.5	10	15	18.5
	660/690V	5.5	7.5	10	15	18.5
Rated heat current (A)		20	20	32	40	50
Electrical life	AC3(x104)	100	100	100	100	800
Electrical life	AC4(x104)	20	20	20	20	20
Mechanical life (x104)4		1000	1000	1000	20	800
Number of the contacts		4P+4NO/2NO+2NC
Number of the contacts
Type	LC1
Type		D40008 D40004	D50008 D50004	D65008 D65004	D80008 D80004	D95008 D95004
Rated working current (A)	AC3	40	50	65	80	95
Rated working current (A)	AC4	18.5	24	28	37	44
Standard power ratings of 3-phase motors 50/60Hz in category AC-3	220/230V	11	15	18.5	22	25
	380/400V	18.5	22	30	37	45
	415V	22	25	37	45	45
	500V	22	30	37	55	55
	660/690V	30	33	37	45	55
Rated heat current (A)		60	80	80	125	125
Electrical life	AC3(x104)	80	60	60	60	60
Electrical life	AC4(x104)	15	15	15	10	10
Mechanical life (x104)4		800	800	800	600	600
Number of the contacts		4P+4NC/NO/2NO+2NC
