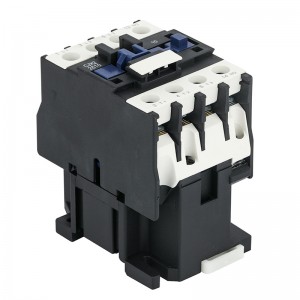

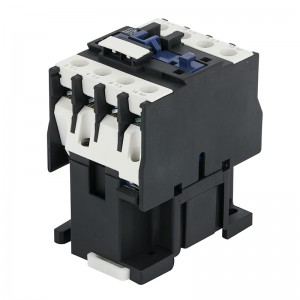

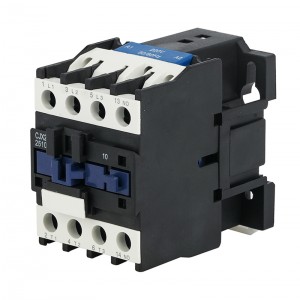

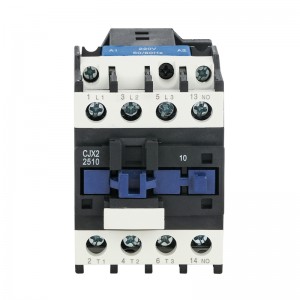

AC Contactor LC1-D3210 32A 48V

Short Description:

Contactor production engineering:
1.Excellent shell material
2.Cooper part with 85% silver contact point
3.Standard cooper coil
4.High quality magnet
5.Beautiful packing box
Application scenarios:
Usually installed in the distribution box on the floor, computer center,telecommunication room,elevator control room,cable TV room,building control room, fire center, industrial automatic control area, hospital operation room,monitoring room and distribution box equipment with electronic medical device.

Send email to us

Product Detail

Product Tags

Type Designation

Technical Parameter

Midel	2 Cabling cross Section(cu)				Screw size	Tighteningtorque(N. m)
Midel	Numbet of piece	Flexible cable with cold-prossed socKet(mm2)	Flexible cable without cold-pressed socket(mm2)	lnflekible cable(mm2)	Screw size	Tighteningtorque(N. m)
JLC1-09	1-2	2.5	4	4	M3.5	0.8
JLC1-12	1-2	2.5	4	4	M3.5	0.8
JLC1-18	1-2	4	6	6	M3.5	0.8
JLC1-25	1	4	10	6	M4	1.2
JLC1-25	2	4	6	6	M4	1.2
JLC1-32	1	4	10	6	M4	1.2
JLC1-32	2	4	6	6	M4	1.2
JLC1-40	1	10	16	10	M4	3.5
JLC1-40	2	10	10	10	M8	3.5
JLC1-50	1	16	25	25	M8	3.5
JLC1-50	2	16	16	-	M8	3.5
JLC1-65	1	16	25	25	M8	3.5
JLC1-65	2	16	16	-	M8	3.5
JLC1-80	1	50	50	50	M8	3.5
JLC1-80	2	25	35	-	M10	4.0
JLC1-95	1	50	20	50	M10	4.0
JLC1-95	2	25	35	-	M10	4.0
