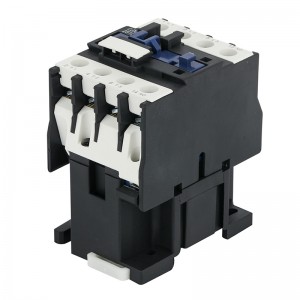

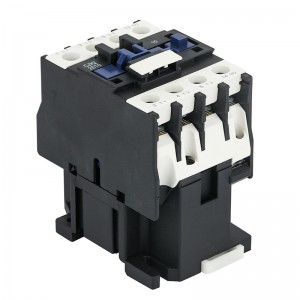

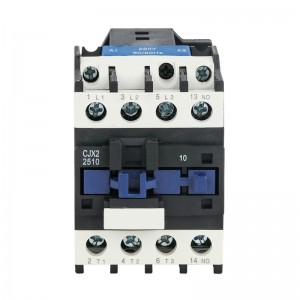

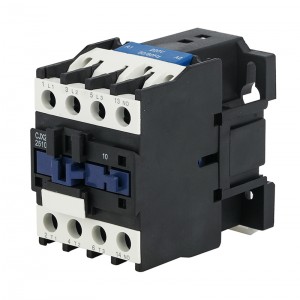

Magnetic ac contactor JLC1-2510 220V

Short Description:

Rated conventional heating current:40 ith(A)
Rated voltage Ui(v):690/440
Rated operation current: AC-3 le(A):25
AC-4 le (A):8.5
Power control three phase case motor AC3: 220/240kw:5.5
380/415kw:11
660/690kw:15
Electric life: 1000000
Mechanical life:100000
Matching fuse: RT16
Auxiliary contact: 1N.C
PAYMENT WAY
By T/T,（30% prepaid and the balance will be paid before shipment）, L/C(letter of credit)

Send email to us

Product Detail

Product Tags

Type Designation

Technical Parameter

Midel	2 Cabling cross Section(cu)				Screw size	Tighteningtorque(N. m)
Midel	Numbet of piece	Flexible cable with cold-prossed socKet(mm2)	Flexible cable without cold-pressed socket(mm2)	lnflekible cable(mm2)	Screw size	Tighteningtorque(N. m)
JLC1-09	1-2	2.5	4	4	M3.5	0.8
JLC1-12	1-2	2.5	4	4	M3.5	0.8
JLC1-18	1-2	4	6	6	M3.5	0.8
JLC1-25	1	4	10	6	M4	1.2
JLC1-25	2	4	6	6	M4	1.2
JLC1-32	1	4	10	6	M4	1.2
JLC1-32	2	4	6	6	M4	1.2
JLC1-40	1	10	16	10	M4	3.5
JLC1-40	2	10	10	10	M8	3.5
JLC1-50	1	16	25	25	M8	3.5
JLC1-50	2	16	16	-	M8	3.5
JLC1-65	1	16	25	25	M8	3.5
JLC1-65	2	16	16	-	M8	3.5
JLC1-80	1	50	50	50	M8	3.5
JLC1-80	2	25	35	-	M10	4.0
JLC1-95	1	50	20	50	M10	4.0
JLC1-95	2	25	35	-	M10	4.0
