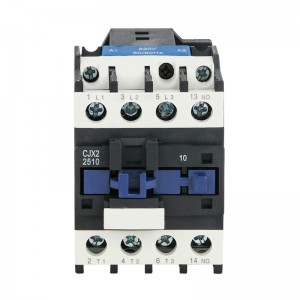

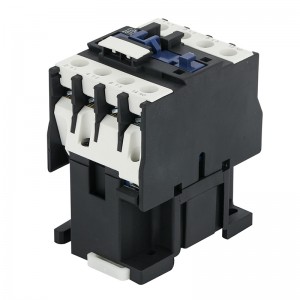

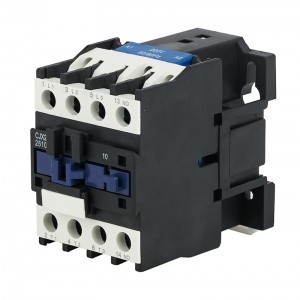

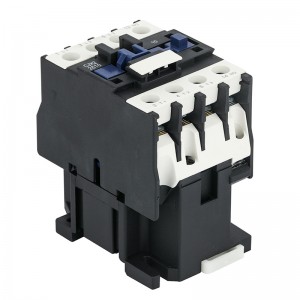

Magnetic ac contactor JLC1-09/12

Short Description:

● Application: Remote making & breaking circuits; protect circuit from over-load when assembling
with thermal over-load relay;frequent start-up and control of AC contactor;
● Electric ratings: AC50/6OHz,690v,up to 95A;
● Utilization category: AC-3,AC-4;
● Altitude: ≤ 2000m;
● Ambient temperature: -5°C~+40°C;
● Mounting category: III;
● Mounting condlitions: Inclination between the mounting planeand the verticall plane should not
exceed ±5°;
● Standard: IEG/EN 60947-4=IEC/EN 60947-5-1.
● Gontrol Goil valtage(AC Goil Operation).

Send email to us

Product Detail

More Description

Product Tags

Type Designation

Technical Parameter

Midel	2 Cabling cross Section(cu)				Screw size	Tighteningtorque(N. m)
Midel	Numbet of piece	Flexible cable with cold-prossed socKet(mm2)	Flexible cable without cold-pressed socket(mm2)	lnflekible cable(mm2)	Screw size	Tighteningtorque(N. m)
JLC1-09	1-2	2.5	4	4	M3.5	0.8
JLC1-12	1-2	2.5	4	4	M3.5	0.8
JLC1-18	1-2	4	6	6	M3.5	0.8
JLC1-25	1	4	10	6	M4	1.2
JLC1-25	2	4	6	6	M4	1.2
JLC1-32	1	4	10	6	M4	1.2
JLC1-32	2	4	6	6	M4	1.2
JLC1-40	1	10	16	10	M4	3.5
JLC1-40	2	10	10	10	M8	3.5
JLC1-50	1	16	25	25	M8	3.5
JLC1-50	2	16	16	-	M8	3.5
JLC1-65	1	16	25	25	M8	3.5
JLC1-65	2	16	16	-	M8	3.5
JLC1-80	1	50	50	50	M8	3.5
JLC1-80	2	25	35	-	M10	4.0
JLC1-95	1	50	20	50	M10	4.0
JLC1-95	2	25	35	-	M10	4.0

Overall And Mounting Dimensions (mm)

Previous: AC Contactor LC1-D6511 65A 220V

Next: JXC AC Contactor 80/95A

Application scenarios:
Usually installed in the distribution box on the floor, computer center,telecommunication room,elevator control room,cable TV room,building control room, fire center, industrial automatic control area, hospital operation room,monitoring room and distribution box equipment with electronic medical device.
