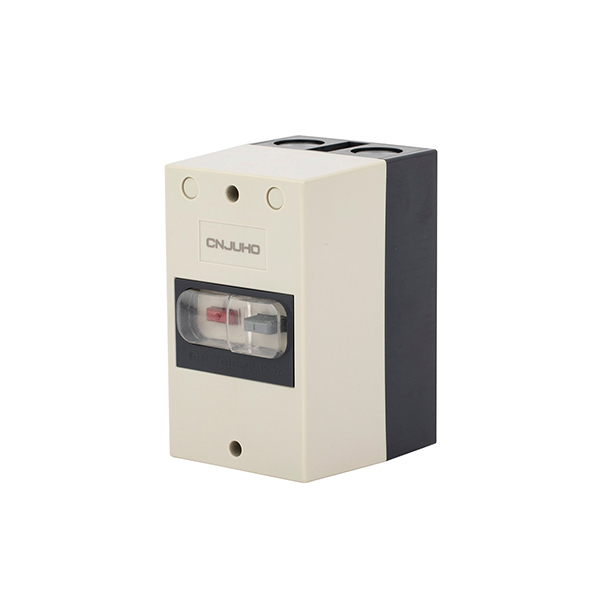

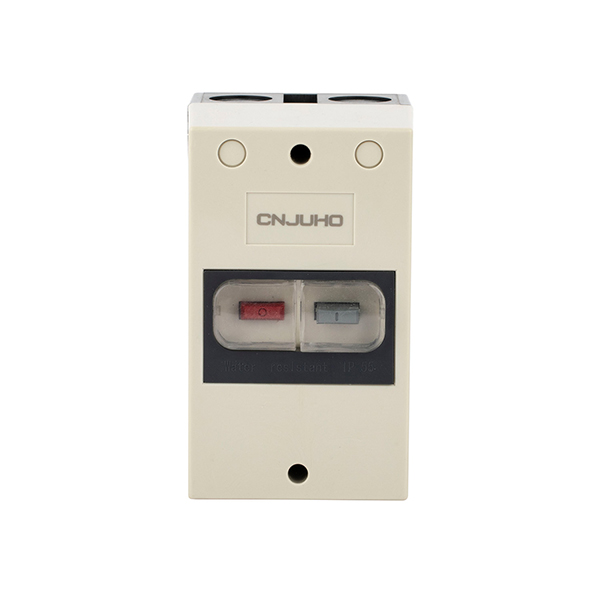

3VE1 water-proof box

Short Description:

J3VE series molded case circuit breakers (hereinafter referred to as circuit breakers) are suitable for dry AC 50Hz, rated working voltage AC380V, AC660V, and rated current 0.1A to 63A. It can be used as overload and short circuit protection of electric motors. It can also be used as power distribution circuit. Used for overload and short circuit protection of electrical equipment. Under normal conditions, it can also be used for infrequent switching of lines and infrequent starting of motors. This series of products comply with GB/T14048.2 and IEC60947-2 standards.


Product Detail

Product Tags

Model 3VE1 3VE3 3VE4
Pole NO. 3 3 3
Rated Voltage(V) 660 660 660
Rated Current(A) 20 20 20
Rated breaking capacity of short circuit 220V 1.5 10 22
380V 1.5 10 22
660V 1 3 7.5
Mechanic life 4×104 4×104 2×104
Electric life 5000 5000 1500
Auxiliary Contact Parameters   DC AC
Rated Voltage(V) 24, 60, 110, 220/240 220 380 It can be
matched with
the auxiliary
contact only
Rated Current(A) 2.3, 0.7, 0.55, 0.3 1.8 1.5
Protective Features Motor Protection Su Current Multiple 1.05 1.2 6
Action Time No action <2h >4s
Distribution Protection Su Current Multiple 1.05 1.2
Action Time No action <2h
